ข้อมูลเพิ่มเติม
Dimensions | ไม่ใช่ | 10/100/1000BASE-T ports | 8 |
---|---|---|---|
Auto Negotiation | มี | MDI / MDI-X auto-switching | ใช่ |
Switching capacity | 20Gbit / s | Transfer capability | 11.9Mpps |
Maximum MAC address registration number | 8,192 | Frame buffer | 176KB |
Port VLAN | มี | Tag VLAN (IEEE802.1Q) | มี |
Maximum number of VLAN | 256 (VLAN ID 1 ~ 4,094) | Flow Control | IEEE802.3x (full duplex), back pressure (half duplex) |
Support function | Multiple VLAN, port QoS (DSCP value setting), loop detection, port mirroring, port shutdown, link speed down shift, packet counter, power-saving mode | Switch control function (※ 1) | Management auto configured from the router, management control from the GUI / command of routers, network configuration display, VLAN batch configuration, host search, via SNMP on the router |
System requirements | 0 ~ 40 ℃ ambient temperature, and (non-condensing) 15-80% humidity | Power | (Prevention bracket missing power) AC100V (50/60Hz), built-in power supply (no power switch), parallel 2-pole plug, power inlet |
Maximum power consumption (apparent power), maximum current consumption, heat value | 7W (13VA), 0.13A, 25.2kJ / h | Chassis | Metal housing, fanless |
Interference standards, environmental impact management | VCCI Class A, RoHS compatible, energy saving law compliance | External dimensions | (Excluding protrusions) (including the legs) 220 (W) × 44 (H) × 118 (D) mm |
(Accessories not included) Mass | 950g | State indicator (front) | (PORT lamp, displayed by switching LINK / ACT, SPEED, DUPLEX, by the STATUS MODE button) POWER, MODE × 2, PORT × 8 |
Accessories | Power cable, power omission prevention bracket, instruction manual (including warranty) | Option | 19-inch rack mount (tray type) Kit, Magnet Kit |
Setting means | Configuration using the (GUI / command of RTX1200/NVR500) Yamaha routers, configuration using the PC application | Energy consumption efficiency (W / (Gbit / s)) (※ 2) | C division 0.8 |
Maximum effective transmission rate (Gbit / s) | 8.0 | Number of ports and port speed measurement | 1Gbit / s: 8 |

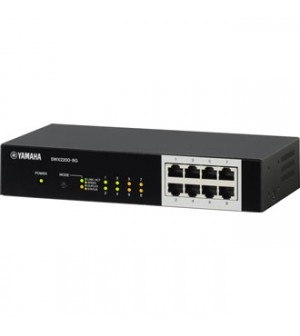

SWX2200-8G
(※ 1) requires separate router that supports the switch control function.
(※ 2) energy consumption efficiency of the switch based on the "Law Concerning the Rational Use of Energy".

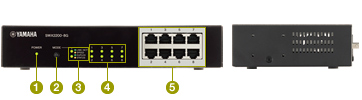

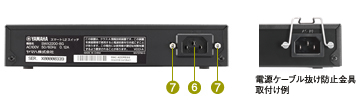

External view
- 1. POWER indicator
- 2. MODE switch button
- 3. MODE indicator
- 4. PORT indicator
- 5. LAN port
- 6. POWER inlet
- 7. Metal brace power cable
How to enter the configuration page from SWX2200 Setup screen RTX810
Show topology (topology display screen)
I set the VLAN tag
I set the multiple VLAN
