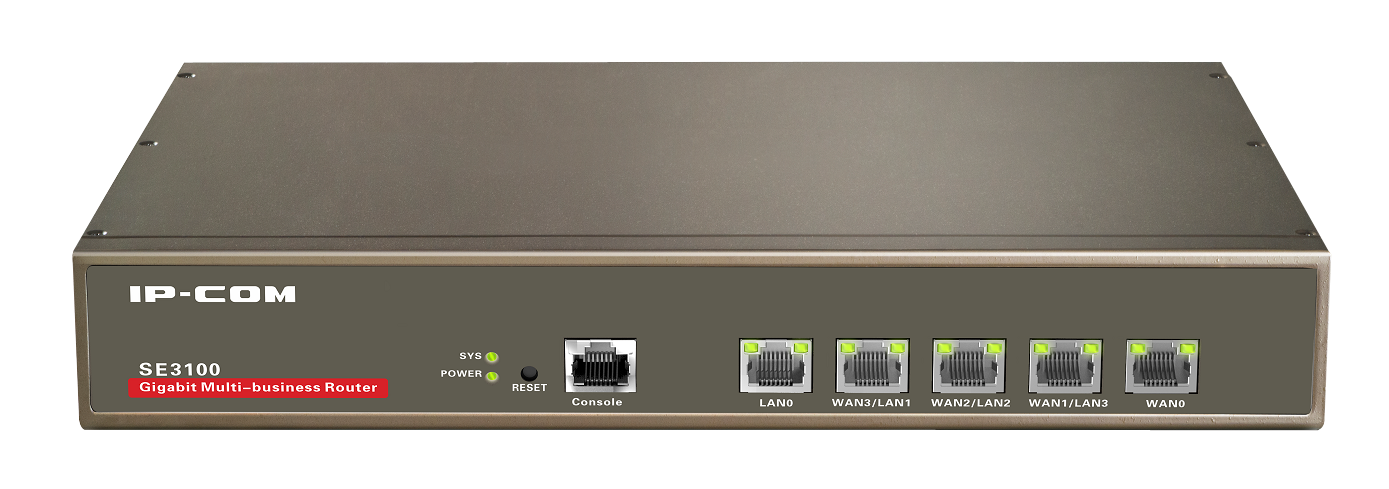

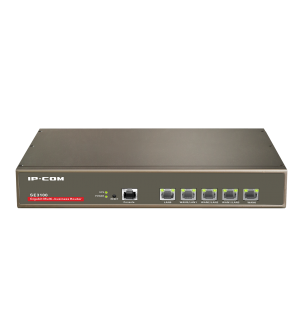

SE3100
| Model | SE3100 |
| Dimensions | 294*178*44 (mm) |
| CPU | 800MHz ARM CPU |
| Flash | 128MB Nand flash |
| Size of RAM | 512MB |
| Interface | 1 -4* GE WAN 4 -1* GE LAN 1*RJ45 Console |
| Button | 1*Reset |
| Input Voltage | AC 100-240V 50/60Hz |
| User Capacity | 150 |
| Operating Temperature | -10 ํC - 70 ํ C |
| Operating Humidlty | 10% - 90% non-condensing |
| Storage Humidity | 10% - 90% non-condensing |
| Default Setting | Default IP : 192.168.0.252 Username : admin Password : admin |
| Certification | FCC,CE,RoHS |
| System | Linux |
| Connection Types | PPPoE Dynamic IP Static IP |
| Multi-WAN | Maximum up to 4 WANs |
| Load balancing | Session-based User-based |
| Bandwidth Control | 30 entries Account-based IP(Group)-based |
| Authentication | 200 authentication accounts Customize the account duration time Customize potal page Online user statistics |
| AP Management | Maximum up to 16 Aps |
| Port Forwarding | 32 entries |
| Static Routing | 16 entries |
| Remote Web Management | Support |
| Access Control List | IP/MAC address-based Access Control List |
| Ping Attacking Protection | Support |
| DDNS | Dyndns/No-ip |
| Web Timeout | Support |
| PPTP Server | Support 32 PPTP VPN tunnels at most |
| PPTP Client | Support |
| L2TP Server | Support 32 L2TP VPN tunnels at most |
| L2TP Client | Support |
| IPsec Server | Support 32 IPsec VPN tunnels at most |
| VPN Passthrough | PPTP/L2TP/IPsec |
| Diagnostic Tools | Ping & Traceroute |
| Maintenance | Date & Time Sync Reboot Upgrade Backup/Import config Restore to Factory Defaults User Management Syslog |
