ข้อมูลเพิ่มเติม
| Dimensions | ไม่ใช่ | Network services and support line | FTTH (fiber-optic), ADSL, CATV, ATM access, IP-VPN network, wide area Ethernet network, mobile phone network, FLET'S services, IPv6 PPPoE / IPoE (FLET'S Hikari Next line), data connect (FLET'S Hikari Next line) |
|---|---|---|---|
| LAN port | 1 port (10BASE-T/100BASE-TX/1000BASE-T, straight / cross auto-detection) ※ LAN port 4-port switching hub | LAN1 switch function | - |
| WAN port | (10BASE-T/100BASE-TX/1000BASE-T, straight / cross auto-detection function) 1 port | ISDN U port | - |
| ISDN S / T port | - | PRI port | - |
| LINE port | - | TEL port | - |
| microSD slot | 1 slot (SDHC compatible) | USB port (※ 1) | (: Support up to 500mA, the USB memory / USB data communication terminal USB 2.0 Type-A, power supply current) 1 port |
| Console port (setting) | 1 port (D-sub9 pin, DTE mode fixed, 9,600 bit / s) | Expansion slot | - |
| Flash ROM | (: 1 pair, Configuration: There are five pairs / history function firmware) 16MB | RAM | 128MB |
| Status display lamp | Front: 6 (POWER, STATUS, LAN, WAN, microSD, USB), back: 10 (LINK × 5, SPEED × 5) | System requirements | 0 ~ 50 ℃ ambient temperature, and (non-condensing) 15-80% humidity |
| Power | AC100V (50/60Hz), built-in power supply, parallel two-prong plug, ground terminal, power switch, power switch guard | Maximum power consumption (apparent power), maximum current consumption, heat value | 11W (23VA), 0.23A, 39.6kJ / h |
| Energy saving function | Shutdown of unused LAN port, LED brightness control, microSD slot / USB port down | Enclosure temperature measurement | - |
| Chassis | Plastic casing, fanless | Interference standards, environmental impact management | VCCI Class A, RoHS compatible |
| External dimensions | (Without cable, the terminal type) 220 (W) × 42.6 (H) × 160.5 (D) mm | (Accessories not included) Mass | 870g |
| Accessories | LAN cable (one: 3m), booklet (please read the beginning, warranty card), CD-ROM (1 piece: [PDF] manual command reference configuration example Library, [software] RT-FileGuard) | Throughput (※ 2) | Up to 1Gbit / s |
| IPsec throughput (※ 3) | Up to 200Mbit / s | IPv6 connection type | Native, tunnel, dual stack, RA proxy, DHCPv6-PD |
| Routing Protocols for | IP, IPv6 | IP routing protocols | RIP, RIP2, OSPF, BGP4 (EBGP) |
| IPv6 routing protocol | RIPng | Route Number of entries (※ 4) | Up to 2,000 |
| The route and OSPF neighbor number (※ 4) | 2,000 route: at 10 neighbor | BGP4 route number (※ 4) | Up to 2,000 |
| WAN protocol | PPPoE | PPPoE sessions | Five |
| Authentication function | RADIUS, PAP / CHAP, MS-CHAP/MS-CHAPv2 | Management protocol | SNMP (v1, v2c, v3) |
| Statistics and Management Functions | - | Program Management (※ 5) | Configuring multiple (history function), revision (microSD, USB memory) from the DOWNLOAD button · WWW Setup screen · TFTP / SFTP · external memory, first boot the firmware configuration saved (microSD, USB memory) to external memory |
| Logging facility | Stored in the memory, output in the SYSLOG, output (microSD, USB memory) to the external memory (with cryptographic functions), save the log of the power switch disconnected (power off log save function), reboot log save function | Contents of the log | Filtered packets, and operating status of the various functions |
| Log storage capacity | 3,000 line up | Setting means | Console, TELNET server (multiple), TELNET client, SSH server (multiple), WWW (custom GUI support), setting (microSD, USB memory) via the external memory, download / upload by TFTP / SFTP, remote access via the FOMA setup (※ 6) remote setup, connect the da |
| VPN capabilities | IPsec (VPN features: NAT traversal, XAUTH) + AES128/256, 3DES, DES: (main mode, aggressive mode), PPTP (VPN function) + RC4 (cryptographic functions) (cryptographic functions hardware processing) + IKE/IKEv2 (※ 7 ) , L2TP/IPsec | VPN ground number (IPsec) | 6 (maximum configurable number: 6) (※ 8) |
| VPN ground number (PPTP) | 4 (maximum configurable number: 6) | VPN ground number (IPsec + PPTP) | 6 (maximum configurable number: 6) (※ 9) |
| QoS features (control system) | Priority control, bandwidth control (Dynamic Traffic Control), Dynamic Class Control, VPN QoS (※ 10) , band detection function, load notification feature | QoS features (classification scheme) | IP address, protocol, port number, ToS field |
| (Cooperation with the network side QoS features) QoS function | Coloring (ToS), ToS → CoS conversion | Private network service facility | Tag VLAN, IPv6 multicast (MLDv1, MLDv2, MLD proxy) |
| Tag VLAN (IEEE 802.1Q) | The 8ID each LAN | Security Features | (Internal database reference types), DHCP terminal authentication feature, Winny filter (Winny Version2 compatible), (1.0 EX2 corresponding version Share) Share filter, MAC address filtering URL filtering function |
| Firewall function (IPv4/IPv6 static filtering) | (With Established, TCP flag) IP address, port, protocol, applies to IN / OUT source / destination, the LAN side / WAN side | Firewall function (IPv4/IPv6 dynamic filtering) | Application (TCP, UDP), application applications (FTP, TFTP, DNS, WWW, SMTP, POP3, TELNET), free definition, the IN / OUT on the LAN side / WAN side basic application |
| Dynamic filter Sessions | 10,000 | Firewall (IDS: IPv4 unauthorized access detection) | Can detect unauthorized access of 31 species in the category applied to the IN / OUT on the LAN side / WAN side, IP header, IP header options, such as ICMP · UDP · TCP · FTP, unauthorized access detection mail notification |
| Address translation (NAT descriptor function) | NAT, IP masquerading, static NAT, static IP masquerade, DMZ host feature, PPTP pass-through (multiple sessions) (※ 11) , IPsec pass-through (one session), FTP support, traceroute support, ping response, SIP-NAT support ( ※ 12) , IP masquerade conversion s | NAT Sessions | 10,000 |
| Backup function | Backup, backup mail notification VPN / Ethernet VRRP, floating static, by the network / Tunnel backup function | IP keepalive ground number (※ 13) | Hundred |
| Data compression | CCP (Stac LZS), VJC | Router function | DHCP server, DHCP client, DHCP relay agent, DNS recursive server, DNS server selection function, CIDR, PROXY ARP, SNTP server, NTP client, LAN secondary address setting, filter routing, LOOPBACK / NULL interface, packet forwarding filters, multi-homing, s |
| Extension | Lua script, USB data communication terminal corresponding switch control (SWX2200 correspondence) | Default IP address | 192.168.100.1 |
| Telephone function | - | Specifications Target firmware (※ 5) | Rev.11.01.04 later |

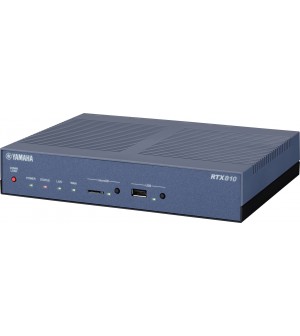

RTX810
(※ 1) I do not guarantee the operation of the USB memory of all. You can not use the USB HUB. I will publish on our website is compatible USB data communication terminal date.
(※ 2) (no NAT, no filter, bi-directional) throughput value is measured by SmartBits.
(※ 3) according to SmartBits of AES + SHA1 is used, measurements in the shipping version (in both directions).
(※ 4) A number based on the measurement results was carried out in our company.
(※ 5) The latest program, we have published on the home page.
(※ 6) models corresponding to the calling operation, RTX3000 (Rev.9.00.24 later) · RTX1500 (Rev.8.03.60 later) · RTX1200 · RTX1100 (Rev.8.03.60 later) · RT58i (Rev.9.01 I will be .29 or higher) · NVR500.
(※ 7) This product is equipped with the RSA RSA Security Inc. (R) BSAFE the (TM) software. U.S. of RSA Security Inc. BSAFE and RC4 and is a registered trademark in the United States and other countries.
(※ 8) I will include the number of ground-to-ground IPsec also number of L2TP/IPsec.
(※ 9) You can not use the anonymous connection and PPTP anonymous connections L2TP/IPsec.
(※ 10) This is a function to apply QoS in the IPsec tunnel.
(※ 11) if the PPTP client, Support for multiple sessions. PPTP server is 1 session.
(※ 12) It is possible that the combined use of IP telephony services. It is possible to be installed for a (only one configuration cascade or single one) NVR500 · RT58i · RT57i · RTV700 Yamaha VoIP gateway to subordinate. It should be noted, is required (a private IP address on the LAN side) a fixed global IP address on the WAN side.
(※ 13) is the number of ground if you do not combination and network backup function and VPN, to be used for monitoring the IP keepalive function.
(※ 14) Internet using a private address "10. ×. ×. ×" "172.16. ×. × ~ 172.31. ×. ×" such as "192.168. ×. ×" The environment (CATV, etc.), net Volante DNS services are not available.
(※ 15) It can be used in combination (such as video chat and voice chat) two-way communication between the PC MSN Messenger6.1 is installed and Windows Messenger4.7. It does not guarantee the UPnP device connection.
External view
- 1. DOWNLOAD button
- 2. Power indicator
- 3. Line status indicator
- 4. microSD slot
- 5. USB port
- 6. Ground terminal
- 7. Power switch guard
- 8. Power switch
- 9. Console
- 10. LAN port
- 11. WAN port
Feature
The number with a function of for NGN
RTX810 is compatible is provided by the NGN service of NTT East · NTT West, data connect (remote setup connection between bases), the IPv6 PPPoE / IPoE.
Technical information : "Data Connect"
The Gigabit Ethernet LAN installed in all ports
Gigabit Ethernet (GbE) of all 5 ports of WAN / LAN port.
Routing performance (throughput), and achieved maximum 1Gbit / s (two-way).
VPN (IPsec) throughput, has achieved up to 200Mbit / s (two-way) by the routing performance and enhanced cryptographic processing hardware.
Data communication using the USB data communication terminal
You can make a wireless WAN connection using the mobile phone network by connecting the USB data communication terminal to the USB port.
You will be able to be in line installation work without a wired or line undelivered area, also including temporary and store construction site, to build a broadband network. ※ I place the following technical information within-enabled handsets list. Technical Information : "Mobile internet access"
External memory support (microSD / USB memory / USB hard disk)
You can use the maintenance and expansion various functions by using the external memory.
And saved log, firmware, configuration, of Lua script, copy
firmware that you saved to external memory, starting from the configuration
◎ each model corresponding memory support Functions
| RTX1200 | RTX810 | NVR500 | RT58i | FWX120 | SRT100 | ||
|---|---|---|---|---|---|---|---|
| Corresponding memory | microSD | ○ | ○ | ○ | ○ | ||
| USB thumb drive | ○ | ○ | ○ | ○ | ○ | ○ | |
| USB hard disk | ○ | ||||||
| Corresponding function | Log storage | ○ | ○ | ○ | ○ | ○ | ○ |
| Configuration file copy | ○ | ○ | ○ | ○ | ○ | ○ | |
| Farm copy | ○ | ○ | ○ | ○ | ○ | ○ | |
| Statistics Output | ○ | ○ | ○ | ○ | |||
| Booting from external memory | ○ | ○ | ○ | ○ | |||
| Batch file | ○ | ○ | ○ | ○ | |||
| Redirection | ○ | ○ | ○ | ○ | |||
| File sharing / synchronization | ○ |
Technical information : "use of external memory"
Power off log save function / reboot log save function
"When the operation is unstable, I would turn the power with". There is a case when an emergency recovery is desired, especially to take such measures.
However, the log of running is required in order to determine the cause, but you will not be able to find the cause logs are gone when you turn the power.
When the power is turned off, because the transition to the standby state you must save the log to non-volatile memory in the body of the log in memory as soon as possible, and log in before the power was removed after a reboot "power off log save function" You can be sure.
The order to evacuate in the RAM log when the reboot occurs for some reason, you can check later log on reboot mounted anew than RTX810, the "reboot log save function". ※ log on reboot is saved in RAM, I will be erased when power is shut down.
Power off log save function
Enhanced performance and energy saving function corresponding global warming measures (Green IT)
As a router that supports small network · SOHO environment in which corresponds to all ports 1000BASE-T, RTX810 is a product of the low power consumption of the industry.
And less than 3.1W RT107e and if it is measured in (※ 1) under the same conditions as RT107e the conventional model.
There are only (※ 2) 5.2W even when the LAN / WAN port is linked up with 1000BASE-T all. Link up in (※ 1) all ports 100BASE-TX. RT107e power consumption of under the same conditions is 3.6W. Maximum power consumption of 11.0W (※ 2) specification as noted in the table is the number of time you use the USB port / microSD. In addition, it is equipped with the ability to reduce the power consumption of unused hardware.
Compatible with 50 ℃ operating environment temperature conditions guarantee
I was raised to 50 ℃ to guarantee the operating environment temperature conditions.
L2TP/IPsec (smartphone cooperation)
You can access the corporate network securely from your smartphone / tablet terminal using L2TP/IPsec.
Technical Information : "L2TP/IPsec" setting example : "Connecting to a smartphone / tablet"
Support models: RTX1200 RTX810 RT107e SRT100
※ For connection conditions for L2TP/IPsec, it will vary depending on the firmware support status of each modeltechnical information RTpro to ask to be able to refer to.
