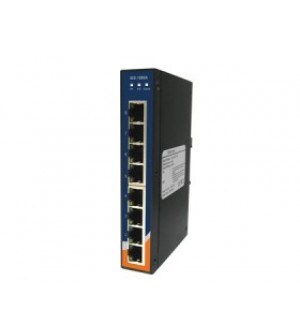

IES-1080A
| 10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX | 8 |
| Ethernet Standards | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3x for Flow control |
| MAC Table | 2048 MAC addresses |
| Processing | Store-and-Forward |
| Power Indicator | Green : Power LED x 2 |
| Fault Indicator | Amber : Indicates PWR1 or PWR2 failure occurred |
| 10/100Base-T(X) RJ45 Port Indicator | Green for port Link/Act. Amber for Duplex/Collision |
| Relay | Relay output to carry capacity of 1A at 24VDC |
| Redundant Input Power | Dual DC inputs: 12~48 VDC on 6-pin terminal block |
| Power Consumption (Typ.) | 4 Watts |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Enclosure | IP-30 |
| Dimensions (W x D x H) | 26.1(W) x 94.9(D) x 144.3(H) mm (1.03 x 3.74 x 5.68 inch.) |
| Weight (g) | 391 g |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Operating Humidity | 5% to 95% Non-condensing |
| EMI | FCC Part 15, CISPR (EN55022) class A |
| EMS | IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Safety | EN60950-1 |
| MTBF (Hours) (MIL-HDBK-217F2, GB, GC, 25°C ) |
707,879 |
| Warranty | 5 years |
