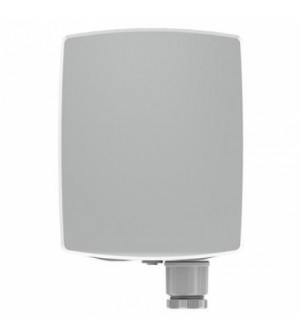

APC 2M-8

สถานะของสินค้า : สินค้าพร้อมส่ง

2,515 บาท
หรือ

รายละเอียดโดยย่อ

IEEE 802.11 b/g/n
2.4 GHz MiMo2x2
Access Point (auto WDS), Station, Station WDS, iPoll Acess point, iPoll Station

ข้อมูลเพิ่มเติม

Dimensions ไม่ใช่ Radio mode IEEE 802.11 b/g/n
WLAN Standard MIMO 2x2 Operating mode Access Point (auto WDS), Station, Station WDS, iPoll Acess point, iPoll Station
Radio Frequency Band 2.4 GHz Receive Sensitivity Varying between -94 and -74 dBm depending on modulation
Channel Size 20, 40 MHz Antenna Type Integrated directional dual-polarized panel
Gain 8 dBi Wired Interface 10/100 Base-T, Rj45
Built in Surge Protection Yes Operation Mode Bridge, Router
Wan Static IP, DHCP client, PPPoE Client NAT Routing w/ or w/o NAT
Static routing Supported DHCP Client, Server, Relay
Port Forwarding Supported VLAN Supported for management and data

The APC 2M-8 delivers one of the highest performance and stability available in the 2.4 GHz CPE class in a smallest form factor on the APC series product line. This product combines a robust IP-65 compliant enclosure with a highly advanced 802.11n radio core containing MIMO 2x2 technology along with an integrated professional dual polarized directional antenna. The device is powered by a reliable, advanced, and feature-rich operating system, allowing the creation of very high throughput and stable wireless networks quickly, safely, and effectively. In addition, the APC 2M-8 supports access point operating mode which extends application scenarios and makes the APC 2M-8 suited for both point to point and point to multipoint networks as this device can work both in an AP (base-station) and in a CPE (client) mode.

   The robust software engine allows the APC 2M-8 to work as bridge or as a router, provides a user-friendly Adobe Flex - based GUI with instant changes, includes useful installation tools (Site survey, Antenna alignment, Delayed reboot, spectrum analyzer), and also is compatible with Wireless Network Management System for one of the most advanced management tools on the market.

Antenna specifications

Frequency range 2.4-2.5GHz
Gain 8 dBi
Polarization Dual linear
Cross-pol lsolation    22 dBi
Max VSWR 1.9:1
H-pol Beamwidth 60°
V-pol Beamwidth 40°
Elevation Beamwidth       40°


Usage recommendation

PTP mode (two APC 2M-8 devices): 10 km/ 6.2 mi

PTMP mode (APC 2M-8 as a client device): 5 km/ 3.1 mi

PTMP full capacity mode (APC 2M-8 as a client device): 1 km/ 0.6 mi

Maximum throughput: 160 Mbps

iPoll - proprietary wireless transmission protocol

Deliberant APC series products have an option to use extremely efficient proprietary point-to-multipoint protocol called iPoll™. It eliminates mediated access by polling every subscriber sequentially. The data transmission arbitration is accomplished by the access point. Proprietary iPoll™ protocol enables maximum bandwidth with the lowest possible latency.

 WNMS - managing and monitoring your networks on the cloud

All Deliberant APC series devices can be managed and monitored using WNMS (Wireless Network Management System). A single software solution simplifies a large number of tasks for network administrators. WNMS Cloud version is available for those who are not willing to run it on an in-house servers
