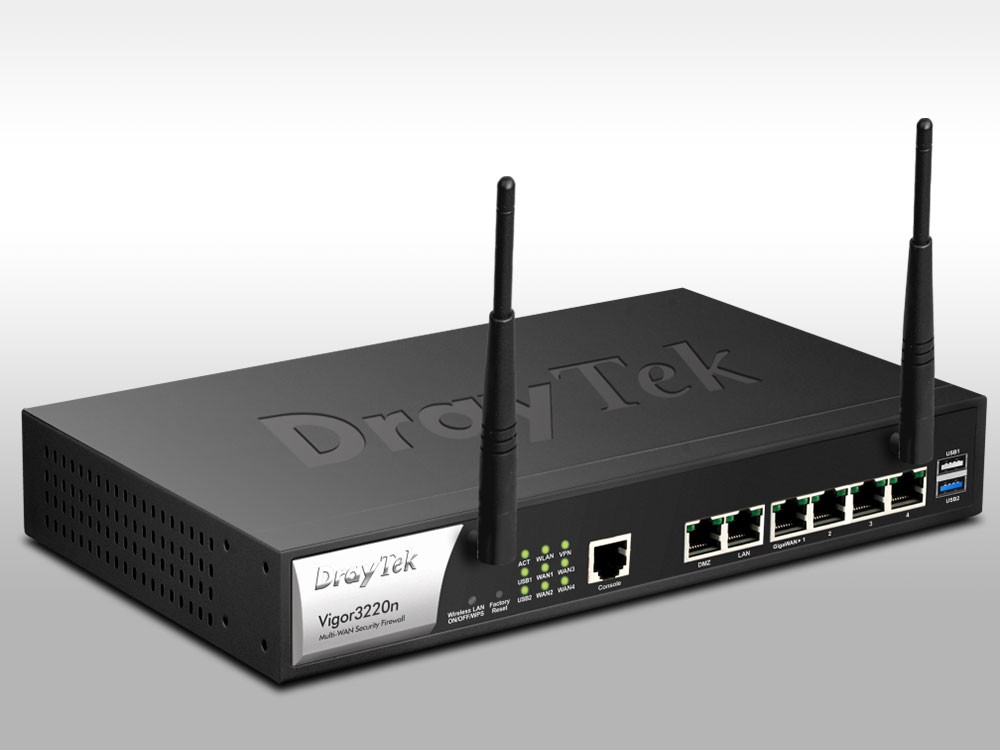

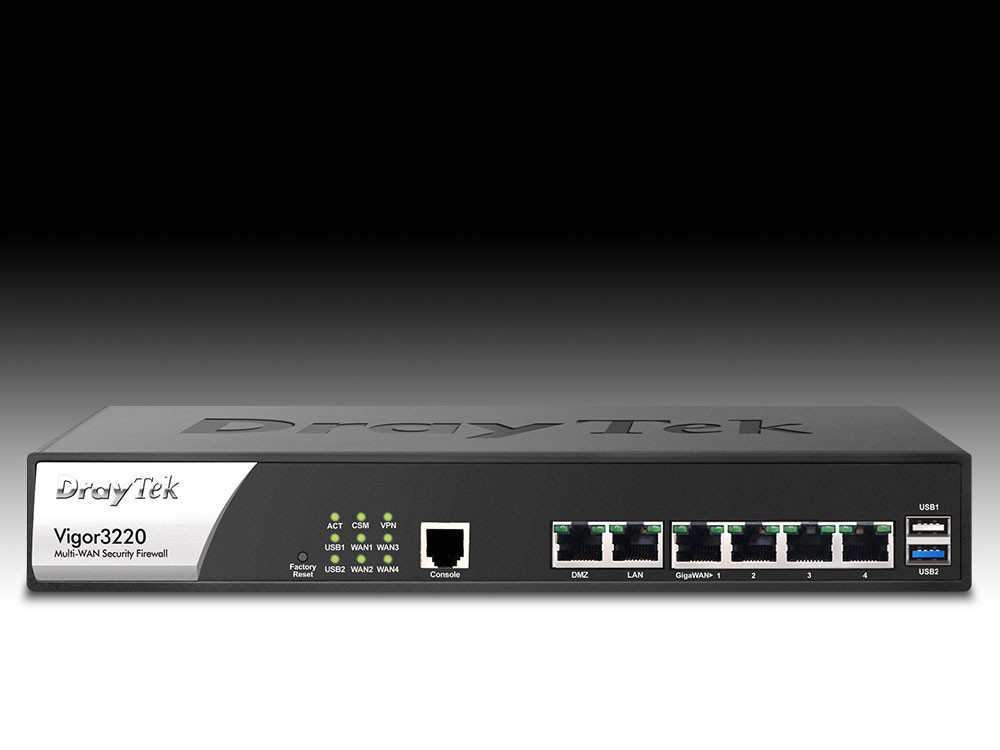

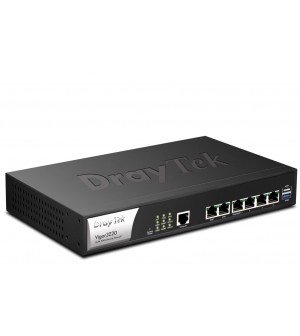

Vigor3220 - Multi WAN

About

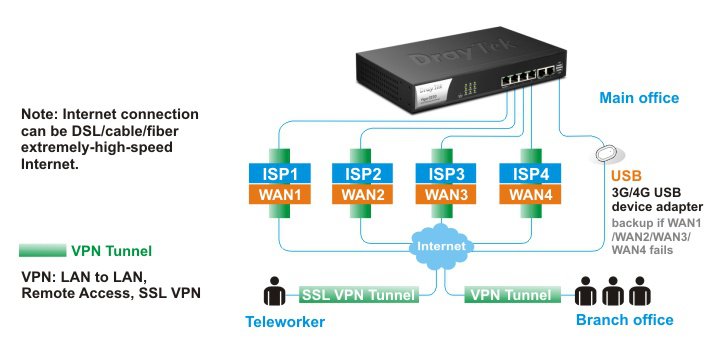

Features of the Vigor3220 series Multi-Subnet security routers will satisfy the network requirements of small to medium business networks. Its Multi-Subnet interface with Multi-VLAN function allows users to easily divide network into different sections based on applications such as ERP and FTP. Each usage/ application or user group can get its dedicated bandwidth and administrator can have security control between user groups for preventing possible data leakage.

Specification

––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

Hardware Interface

- 4 x 10/100/1000Base-Tx WAN Port, RJ-45
- 1 x 10/100/1000Base-Tx LAN Switch, RJ-45
- 1 x 10/100/1000Base-Tx DMZ Port, RJ-45
- 2 x USB Host (USB1 is 2.0 and USB2 is 3.0)
- 2 x Detachable Antennas (n Model)
- 1 x Wireless On/ Off/ WPS Button (n Model)
- 1 x Console Port, RJ-45
- 1 x Factory Reset Button

 Temperature

- Operating : 0°C ~ 45°C
- Storage : -25°C ~ 70°C

 Humidity

- 10% ~ 90% ( non-condensing )

 Power Adapter

 - AC100-240V/ 1.0A

 Max. Power

- 19 Watt

 Dimension

-  L 273 * W 176 * H 46 ( mm )
