Vigor2952 - Dual WAN

About

DrayTek Vigor2952 series Dual WAN serves as a VPN gateway and a central firewall for multi-site offices and tele-workers. With its high data throughput of two-Gigabit Ethernet, Dual WAN, VPN trunking and 4 Gigabit Ethernet LAN ports, the device facilitates productivity of versatile business operations. To secure communications between sites is the establishment of VPN tunnels up to 100 simultaneous tunnels (including 50 SSL VPN tunnels).

Specification

––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

Hardware Interface

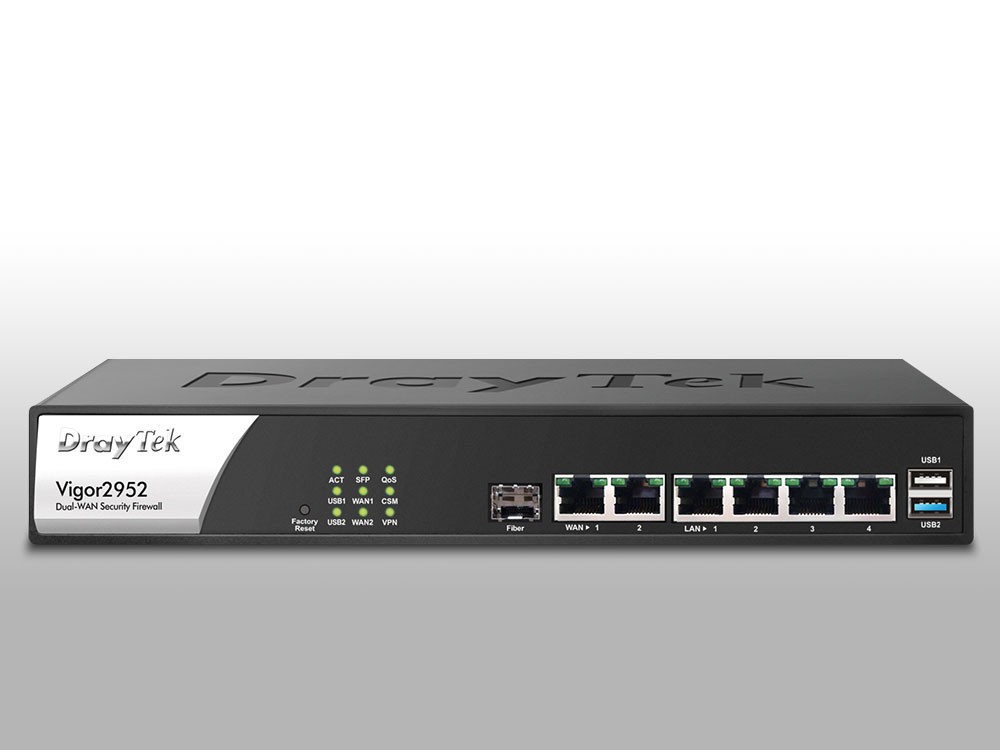

- 1 x Combo WAN, 10/100/1000Base-Tx,RJ-45 or SFP (WAN1)(Fiber Port is High Priority)
- 1 x 10/100/1000Base-Tx, RJ-45 (WAN2)
- 4 x 10/100/1000Base-Tx LAN, RJ-45(P1 is Configurable as DMZ Port)
- 2 x USB Host (USB1 is 2.0 and USB2 is 3.0)
- 2 x Detachable Antennas (Vigor2952n only)
- 1 x Wireless On/ Off/ WPS Button (Vigor2952n only)
- 1 x Factory Reset Button

 Temperature

- Operating : 0°C ~ 45°C
- Storage : -20°C ~ 70°C

 Humidity

- 10% ~ 90% ( non-condensing )

 Power Adapter

 - AC100-240V / 1.0A

 Max. Power

- 19 Watt

 Dimension

-  L273 * W176 * H46 ( mm )
