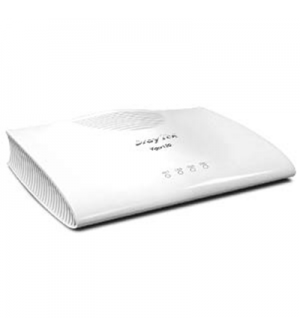

Vigor130 - Single WAN

About

The Vigor130 is an IPv6 ready compact VDSL2 router with ADSL2/2+ fallback for SOHO and residential broadband access requirement. This compact router is capable to manage the latest VDSL2 feed and backward compatible with the existed ADSL line if the infrastructure is not ready yet.

Multi-PVC function makes the triple-play deployment with ease. The Vigor130 can satisfy the different services such as Data/Video/VoIP/Management provided by ISPs by the single VDSL2/ADSL WAN port. And its Gigabit Ethernet LAN port allows devices in the LAN network to get faster data transmission for essential applications.

Specification

––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

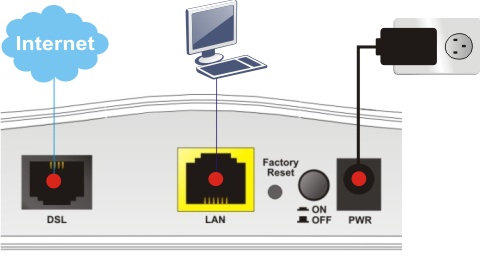

Hardware Interface

- 1 x VDSL2/ADSL2/2+ port, RJ-11 (Annex A)or RJ-45 (Annex B)
- 1 x 10/100/1000 Base-Tx LAN port, RJ-45
- 1 x Factory Reset Button

 Temperature

- Operating : 0°C ~ 45°C
- Storage : -25°C ~ 70°C

 Humidity

- 10% ~ 90% ( non-condensing )

 Power Adapter

 - DC 12V/1A

 Max. Power

- 13.2 Watt

 Dimension

-  L180 * W130 * H26 ( mm )
