Dimensions | ไม่ใช่ | 10/100/1000BASE-T ports | 24 |
---|---|---|---|
Auto Negotiation | มี | MDI / MDI-X auto-switching | ใช่ |
Switching capacity | 46Gbit / s | Transfer capability | 35.7Mpps |
Maximum MAC address registration number | 8,192 | Frame buffer | 500KB |
Port VLAN | มี | Tag VLAN (IEEE802.1Q) | มี |
Maximum number of VLAN | 256 (VLAN ID 1 ~ 4,094) | Flow Control | IEEE802.3x (full duplex), back pressure (half duplex) |
Support function | (DSCP value setting, transmit and receive bandwidth control) multiple VLAN, port QoS, loop detection, port mirroring, port shutdown, link speed down shift, packet counter, power-saving mode | Switch control function (※ 1) | Management auto configured from the router, management control from the GUI / command of routers, network configuration display, VLAN batch configuration, host search, via SNMP on the router |
System requirements | 0 ~ 40 ℃ ambient temperature, and (non-condensing) 15-80% humidity | Power | (Prevention bracket missing power) AC100V (50/60Hz), built-in power supply (no power switch), parallel 2-pole plug, power inlet |
Maximum power consumption (apparent power), maximum current consumption, heat value | 27W (27VA), 0.27A, 97.2kJ / h | Chassis | Metal housing, fan: one based |
Interference standards, environmental impact management | VCCI Class A, RoHS compatible, energy saving law compliance | External dimensions | (Excluding protrusions) (including the legs) 445 (W) × 44 (H) × 200 (D) mm |
(Accessories not included) Mass | 2.6kg | State indicator (front) | (PORT lamp, displayed by switching LINK / ACT, SPEED, DUPLEX, by the STATUS MODE button) POWER, MODE × 2, PORT × 24 |
Accessories | Power cable, power omission prevention bracket, instruction manual (including warranty), 19-inch rack mount kit (L shaped brackets) | Option | ไม่ใช่ |
Setting means | Configuration using the (GUI / command of RTX1200/NVR500) Yamaha routers, configuration using the PC application | Energy consumption efficiency (W / (Gbit / s)) (※ 2) | C division 1.0 |
Maximum effective transmission rate (Gbit / s) | 24.0 | Number of ports and port speed measurement | 1Gbit / s: 24 |

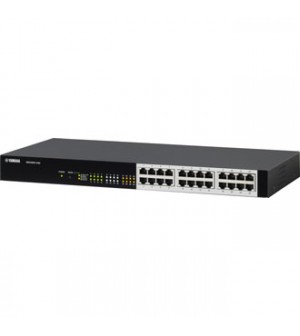

SWX2200-24G
(※ 1) requires separate router that supports the switch control function.
(※ 2) energy consumption efficiency of the switch based on the "Law Concerning the Rational Use of Energy".

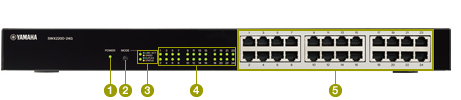

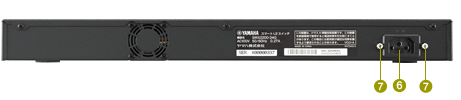

External view
- 1. POWER indicator
- 2. MODE switch button
- 3. MODE indicator
- 4. PORT indicator
- 5. LAN port
- 6. POWER inlet
- 7. Metal brace power cable
How to enter the configuration page from SWX2200 Setup screen RTX810
Show topology (topology display screen)
I set the VLAN tag
I set the multiple VLAN
