ข้อมูลเพิ่มเติม
| Dimensions | ไม่ใช่ |
|---|

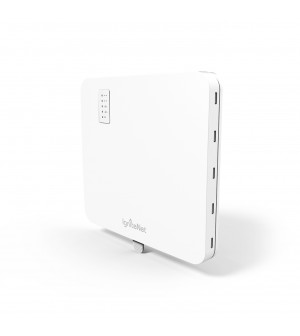

Spark AC1200 Wave2
| Model | Spark AC1200 Wave2 |
| Hardware Features | 1x Gigabit Ethernet Port (PoE IN, 802.3af) 1x Gigabit Ethernet Port (additional) 1x USB 2.0 Port Dual flash image support IP-55 standards rated enclosure |
| LEDs | Power, Ethernet, Wireless, Health/Status, Controller Status |
| Dimensions (L x W x H ) | 176 x 162 x 33 mm (6.9 x 6.4 x 1.3 inch) |
| Weight | 417 g (0.92 lb) |
| Power | 12V/1A DC 802.3af Power over Ethernet |
| Operating Environment | Operating Temperature: -30Cº to +55Cº (-22F to 131F) Store Temperature: -40Cº to 70Cº (-40F to 158F) Operating Humidity: 10 to 90% non-condensing (RH |
| Regulatory / Standards Compliance | FCC, IC, CE, AU, MIC, NCC, SRRC |
| Rf Performance (TX) | 2.4GHz: 23 dBm @ 6Mbps, 14 dBm @ 400Mbps 5GHz: 26 dBm @ 6Mbps, 18 dBm @ 866Mbps |
| Rf Performance (RX) | 2.4GHz: -86 dBm @ 6Mbps, -64 dBm @ 400Mbps 5GHz: -82 dBm @ 6Mbps, -51 dBm @ 866Mbps |
| Antenna Gain | 2.4GHz: 6 dBi - omnidirectional 5GHz: 8 dBi - omnidirectional |
| Key Features | Supports Service Provider and Enterprise type networks Stand-alone or Cloud-controlled operating modes AP/Client/Client WDS modes with Flexible Bridging and Routing 802.11a/b/g/n/ac, 2x2, Dual Band Dual Concurrent ( 2.4GHz and 5GHz) Supports up to 8 SSIDs per radio IEEE802.11e Wi-Fi Multimedia ( WMM-QoS) WPA,WPA2-PSK,WPA2-AES, PSK and Enterprise Admission control by client MAC address |
| Applications | Enterprise AP 3G/4G Offload Managed WiFi Services |
| Max datarate 2.4/5 GHz | 400/866 Mbps |
| MU-MiMo | Yes |
| Antenna | 6/ 8 dBi omni |
| Number of users | 200 |
| Available ports | 2 x 1000 BASE-T |
| Enclosure type | ndoor and outdoor |
| PoE | 802.3af |
