ข้อมูลเพิ่มเติม
| Dimensions | ไม่ใช่ | Antenna Type | Sector Dual Polarization Variable Beamwidth Antenna |
|---|---|---|---|
| Frequency Range | 5.150-5.875 GHz | Gain | 19,20,21 dBi |
| Polarization | Dual-Pol | Beamwidth | Hor 120,90,60 deg, Ver 4 deb |
| VSWR | 1.5:1 Typ | Connector | 2 N-Type Female |
| Front-to-Back Ratio | >25 dBi | Impedance | 50 ohms |
| Maximum Power | 20 watts | Dimension | 28 x 6.4 x 2.5in (Excluding Bracket and Adjustment Slide) |
| Weight | 4.1kg.(9 lbs.) | Wind Load | 125mph (201kph) |
| Operating Temperature | -49°F to 149°F (-45°C to 65°C) |

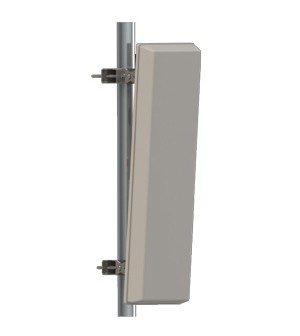

ARC-VS5821SD1
• Wide range of beamwidths, 1 SKU
• Mechanical slide for easy field adjustments
• Ultra wideband frequency performance
• High gain antenna in compact package
• Low profile, rugged design for outdoor use
• US Engineered
• Manufactured under strict US quality control procedures
