สถานะของสินค้า : สินค้าพร้อมส่ง

6,634 บาท


- ARC Wireless

- eXsite™ 5.1-5.9GHz

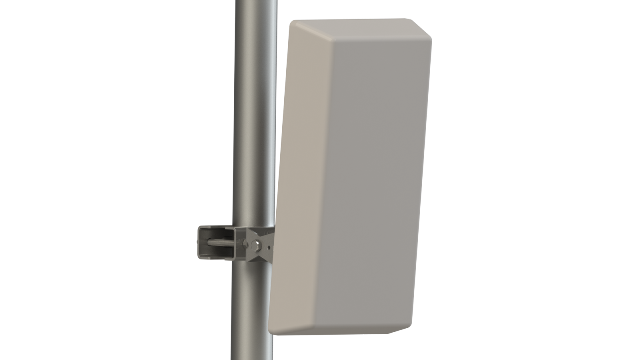

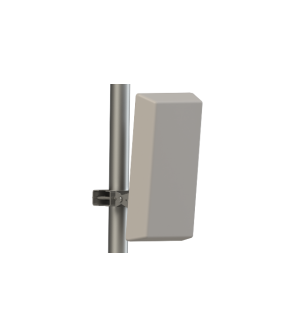

- Variable Beamwidth Sector Dual Polarization Antenna

- 60-120º Variable Beamwidth

- 18-16dBi Dual-Pol Sector

- 2xN-female



Dimensions ไม่ใช่ Antenna Type Sector Dual Polarization Variable Beamwidth Antenna
Frequency Range 5.150-5.875 GHz Gain 16,17,18 dBi
Polarization Dual-Pol Beamwidth Hor 120,90,60 deg, Ver 8 deb
VSWR 1.5:1 Typ Connector 2 N-Type Female
Front-to-Back Ratio >25 dBi Impedance 50 ohms
Maximum Power 20 watts Dimension 15 x 6.4 x 2.5in (Excluding Bracket and Adjustment Slide)
Weight 2.3kg.(5 lbs.) Wind Load 125mph (201kph)
Operating Temperature -49°F to 149°F (-45°C to 65°C)


• Wide range of beamwidths, 1 SKU
• Mechanical slide for easy field adjustments
• Ultra wideband frequency performance
• High gain antenna in compact package
• Low profile, rugged design for outdoor use
• US Engineered
• Manufactured under strict US quality control procedures
