ข้อมูลเพิ่มเติม
| Dimensions | ไม่ใช่ | Radio mode | ไม่ใช่ |
|---|---|---|---|
| WLAN Standard | ไม่ใช่ | Operating mode | ไม่ใช่ |
| Radio Frequency Band | ไม่ใช่ | Receive Sensitivity | ไม่ใช่ |
| Channel Size | ไม่ใช่ | Antenna Type | ไม่ใช่ |
| Gain | ไม่ใช่ | Wired Interface | ไม่ใช่ |
| Built in Surge Protection | ไม่ใช่ | Operation Mode | ไม่ใช่ |
| Wan | ไม่ใช่ | NAT | ไม่ใช่ |
| Static routing | ไม่ใช่ | DHCP | ไม่ใช่ |
| Port Forwarding | ไม่ใช่ | VLAN | ไม่ใช่ |
Hardware Feature

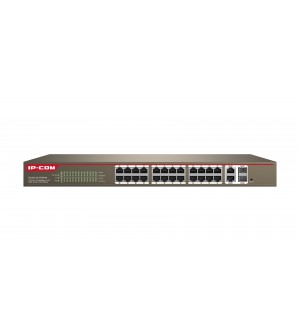

| Model | S3300-26-PWR-M |
| Standard and protocol supported | IEEE 802.3、 IEEE 802.3u、IEEE 802.3z、IEEE 802.3ab、IEEE 802.3x、IEEE 802.1D、IEEE 802.1W、IEEE 802.1Q、IEEE 802.3af、IEEE 802.3at |
| MTBF | 100,000hours |
| Indicator LEDs | Link/Act, PoE Status,System, Power,PoE Max |
| Fixed Ports | 24 10/100Base-TX ports 2 10/100/1000Base-T ports 2 1000Base-X SFP ports Combo) |
| lightning protection | ≥6KV |
| Store and forward | Yes |
| Exchange capacity | 8.8 Gbit/s |
| MAC address entries | 4K MAC |
| Power supply module | Providing 24 ports under IEEE 802.3af(15.4W) or 12 ports under IEEE 802.3at(30W) |
| PoE through pin | 1 2 4 5 +，3 6 7 8 - |
| Voltage input range | AC：100－240V～ 50/60Hz |
| Dimension（L×W×H） | 440mm*284mm*44mm |
| Weight | ≤5kg |
| Total power consumption | <450W PoE consumption up to 370W |
| perating temperature | 0 ℃～40 ℃ |
| Storage temperature | -40 ℃～70 ℃ |
| Relative humidity(Operational) | 10%～95%（noncondensing） |
| Relative humidity(Storage) | 10%～95%（noncondensing） |
Software Feature
| PoE management | Support setup of PoE Support power adjustable by priority Support over temperature protection for PoE module |
| VLAN | Support VLAN(4K) based on ports Support 802.1QVLAN |
| Mirroring | Support local mirror image |
| Link aggregation | Support LACP, manual link aggregation Support up to 6 link aggregation groups and up to 8 GE ports per group |
| QoS | Support message transmission for ports and limitation of speed Support SP & WRR |
| Layer 2 ring network protocol | Support STP/RSTP and looped Network for devices |
| Certification | FCC/CE/RoHS |
