S3300-10-PWR-M

สถานะของสินค้า : สินค้าพร้อมส่ง

0 บาท
หรือ

รายละเอียดโดยย่อ

8 10/100Base-TX RJ45 ports, 2 10/100/1000Base-T RJ45 ports and 2 100/1000Base-X SFP combos.
8 10/100Base-TX RJ45 ports support PoE power supply. The total power output is up to 123W and the maximum output of a single port is 40W.
Powerful port management functions, including port mirroring, speed limit, trunk, etc.
- Powerful port management functions, including port mirroring, speed limit, trunk, etc.
- Supports IEEE 802.3Q Tag VLAN.
- Supports Web, SNMP management and network diagnostics maintenance methods.

ข้อมูลเพิ่มเติม

Dimensions ไม่ใช่ Radio mode ไม่ใช่
WLAN Standard ไม่ใช่ Operating mode ไม่ใช่
Radio Frequency Band ไม่ใช่ Receive Sensitivity ไม่ใช่
Channel Size ไม่ใช่ Antenna Type ไม่ใช่
Gain ไม่ใช่ Wired Interface ไม่ใช่
Built in Surge Protection ไม่ใช่ Operation Mode ไม่ใช่
Wan ไม่ใช่ NAT ไม่ใช่
Static routing ไม่ใช่ DHCP ไม่ใช่
Port Forwarding ไม่ใช่ VLAN ไม่ใช่

Hardware Feature

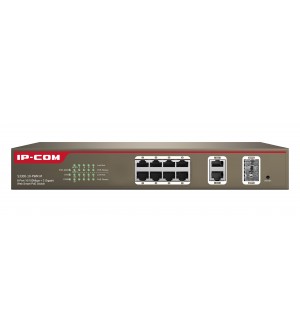

Model S3300-10-PWR-M
Standard and protocol supported IEEE 802.3、 IEEE 802.3u、IEEE 802.3z、IEEE 802.3ab、IEEE 802.3x、IEEE 802.1D、IEEE 802.1W、IEEE 802.1Q、IEEE 802.3af、IEEE 802.3at
MTBF 100,000hours
Indicator LEDs Link/Act, PoE Status,System, Power,PoE Max
Fixed Ports 8 10/100Base-TX ports
2 10/100/1000Base-T ports
2 1000Base-X SFP ports Combo)
lightning protection ≥6KV
Store and forward Yes
Exchange capacity 5.6 Gbit/s
MAC address entries 4K MAC
Power supply module Providing 8 ports under IEEE 802.3af(15.4W) or 4 ports under IEEE 802.3at(30W)
PoE through pin 1 2 4 5 +,3 6 7 8 -
Voltage input range AC:100-240V~ 50/60Hz
Dimension(L×W×H) 294mm*178.8mm*44mm
Weight ≤5kg
Total power consumption

<150

WPoE consumption up to 130W

perating temperature 0 ℃~40 ℃
Storage temperature -40 ℃~70 ℃
Relative humidity(Operational) 10%~95%(noncondensing)
Relative humidity(Storage) 10%~95%(noncondensing)

Software Feature

PoE management Support setup of PoE
Support power adjustable by priority
Support over temperature protection for PoE module
VLAN Support VLAN(4K) based on ports
Support 802.1QVLAN
Mirroring Support local mirror image
Link aggregation Support LACP, manual link aggregation
Support up to 6 link aggregation groups and up to 8 GE ports per group
QoS Support message transmission for ports and limitation of speed
Support SP & WRR
Layer 2 ring network protocol Support STP/RSTP and looped Network for devices
Certification FCC/CE/RoHS
