ข้อมูลเพิ่มเติม
| Dimensions | ไม่ใช่ | Radio mode | ไม่ใช่ |
|---|---|---|---|
| WLAN Standard | ไม่ใช่ | Operating mode | ไม่ใช่ |
| Radio Frequency Band | ไม่ใช่ | Receive Sensitivity | ไม่ใช่ |
| Channel Size | ไม่ใช่ | Antenna Type | ไม่ใช่ |
| Gain | ไม่ใช่ | Wired Interface | ไม่ใช่ |
| Built in Surge Protection | ไม่ใช่ | Operation Mode | ไม่ใช่ |
| Wan | ไม่ใช่ | NAT | ไม่ใช่ |
| Static routing | ไม่ใช่ | DHCP | ไม่ใช่ |
| Port Forwarding | ไม่ใช่ | VLAN | ไม่ใช่ |
|
verview |

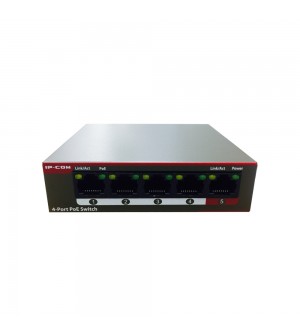

IP-COM S1105-4-PWR-H อุปกรณ์ POE Switch ขนาด 5 Port แบบ Desktop , 4 Port ความเร็ว 10/100Mbps, 1 Port Uplink ความเร็ว 1000Mbps |
|
Protocol s and Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
|
Interface |
4 Port ความเร็ว 10/100Mbps auto-negotiation ports, port1~4 support IEEE802.3 at/af standard |
|
Lighing Protection |
6KV |
|
Switching capacity |
1 Gbps |
|
Mac Address Table |
1 K |
|
PoE Supply |
Port 1 to Port 4 support standard IEEE802.3at/af power( maximum power for each port is 30W) PoE power type is end-span(1245+, 3678- line pair) in full configuration:<63W PoE Max Power Supply:58W |
|
One-key Mode |
Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation. |
|
Environment |
Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
Input Voltage |
AC: 100-240V~ 50/60Hz DC: 51V /2.1A (Power Adapter) |
|
Dimensions |
100mm * 100mm * 26mm (W ? D ? H) |
|
Certification |
3C, FCC, CE, RoHS |
