ข้อมูลทางเทคนิค
|
Model |

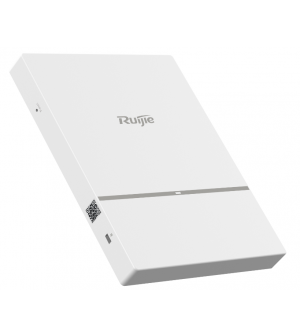

RG-AP820-L(V2) |
|
|
Model |
RG-AP820-L(V2) |
|
|
Hardware specifications |
||
|
Radio |
Dual-radio dual-band： Radio 1: 2.4G 11ax/5G 11ax: 2×2 MIMO Radio 2: 5G 11ax: 2x2 MIMO |
|
|
Protocol |
Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac |
|
|
Operating Bands |
802.11b/g/n/ax ：2.4G ~ 2.483GHz 802.11a/n/ac/ax ： 5.150～5.350GHz，5.47～5.725GHz，5.725～5.850GHz (vary depending on different countries) |
|
|
Spatial Streams |
Up to 4: 2×2:2 in 2.4GHz , 2×2:2 in 5GHz |
|
|
Max Throughput |
Maximum throughput (5G+5G mode) per AP: 2.4Gbps Radio1：5G low band 1.2Gbps Radio2：5G high band 1.2Gbps
2.4G+5G operation mode, maximum throughput per AP: 1.775Gbps Radio1：2.4G 0.574Gbps Radio2：5G 1.2Gbps |
|
|
Modulation |
OFDM：BPSK@6/9Mbps，QPSK@12/18Mbps，16-QAM@24Mbps，64-QAM@48/54Mbps DSSS：DBPSK@1Mbps，DQPSK@2Mbps，and CCK@5.5/11Mbps MIMO-OFDM：BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM OFDMA (up to 1024-QAM) |
|
|
Receiver Sensitivity |
11b：-96dBm（1Mbps），-93dBm（5Mbps），-89dBm（11Mbps） 11a/g：-91dBm（6Mbps），-85dBm（24Mbps），-80dBm（36Mbps），-74dBm（54Mbps） 11n：-90dBm（MCS0），-70dBm（MCS7），-89dBm（MCS8），-68dBm（MCS15） 11ac HT20：-88dBm（MCS0）, -63dBm（MCS9） 11ac HT40：-85dBm（MCS0）, -60dBm（MCS9） 11ac HT80：-82dBm（MCS0）, -57dBm（MCS9） 11ax HT80：-82dBm（MCS0）, -57dBm（MCS9）, -52dBm（MCS11） |
|
|
Antenna |
Integrated antenna design |
|
|
Antenna Gain |
2.4G: 3dBi 5G: 3dBi |
|
|
Service Ports |
1 10/100/1000M Ethernet ports, PoE In |
|
|
Management Port |
1 console port |
|
|
Reset Button |
Support |
|
|
Anti-theft Lock |
Support |
|
|
LED Indicator |
1 LED indicator (Support red, green, blue, orange and flashing mode, which indicates device access) |
|
|
Transmit Power |
≤100mw（20dBm） (vary depending on different countries) |
|
|
Adjustable Power |
1dBm |
|
|
Power Supply |
Local power supply (DC 48V/1A) （DC Power adapters should be purchased from third-party vendors separately if needed） PoE (802.3af) – full spectrum operation |
|
|
Power Consumption |
＜12.95W |
|
|
Physical Specifications |
||
|
Temperature |
Operating Temperature: -10°C to 50°C |
|
|
Storage Temperature: -40°C to 70°C |
||
|
Humidity |
Operating Humidity: 5% to 95% (non-condensing) |
|
|
Storage Humidity: 5% to 95% (non-condensing) |
||
|
Installation Mode |
Ceiling/wall-mountable |
|
|
Dimensions (W x D x H) |
153mm ×193mm x26mm（Height of the AP only, excluding the mount kit） |
|
|
Weight |
≤0.5kg (include mount kit) |
|
|
IP Rating |
IP41 |
|
|
MTBF |
250,000 hours |
|
|
Certifications and Compliance |
||
|
Wi-Fi Alliance |
· Wi-Fi CERTIFIED™ a, b, g, n, ac · Wi-Fi CERTIFIED 6™ · WPA3™-Enterprise, Personal · Wi-Fi Enhanced Open™ · Wi-Fi Agile Multiband™ · WMM® |
|
|
Safety Standard |
GB4943, EN/IEC 62368-1 |
|
|
EMC Standard |
GB9254, EN301 489 |
|
|
Radio Standard |
SRRC, EN300 328, EN301 893 |
|
|
Software Specifications |
||
|
WLAN |
Maximum clients per AP |
1024 |
|
BSSID capacity |
Up to 32 |
|
|
SSID hiding |
Support |
|
|
5G Priority (Band Steering) |
Support |
|
|
Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID |
Support |
|
|
Remote Intelligent Perception Technology (RIPT) |
Support |
|
|
Intelligent device recognition technology |
Support |
|
|
Intelligent load balancing based on the number of users or traffic |
Support |
|
|
STA control |
SSID/radio-based |
|
|
Bandwidth control |
STA/SSID/AP-based bandwidth control |
|
|
Data encryption |
WPA（TKIP）, WPA-PSK, WPA2（AES）, WPA3, WEP（64/128 bits） |
|
|
PSK and web authentication |
Support |
|
|
PPSK authentication (For Employee) |
Support (require wireless controller) |
|
|
802.1x authentication |
Support |
|
|
PEAP authentication |
Support |
|
|
Data frame filtering |
Whitelist, static/dynamic blacklist |
|
|
User isolation |
Support |
|
|
Rogue AP detection and countermeasure |
Support |
|
|
Dynamic ACL assignment |
Support |
|
|
RADIUS |
Support |
|
|
CPU Protection Policy (CPP) |
Support |
|
|
Network Foundation Protection Policy (NFPP) |
Support |
|
|
IP |
IPv4 and IPv6 address |
Support |
|
Multicast routing |
Multicast to unicast conversion |
|
|
DHCP service |
DHCP Snooping, Option 82, Server, Client |
|
|
Management and Maintenance |
Supported wireless LAN controllers |
Ruijie WS Series Wireless Controller Ruijie MACC-Base Software Controller Ruijie Cloud (Public Cloud) |
|
Management protocol |
Telnet, SSH, TFTP, Web |
|
|
Wireless Intelligent AI Optimization Service (WIS) |
Support |
|
|
SNMP |
SNMPV1,V2c,V3 |
|
|
LLDP |
LLDP, LLDP-MED, LLDP-POE |
|
|
Syslog / Debug |
Support |
|
|
FAT/FIT/MACC mode switching |
Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management |
|
