Model

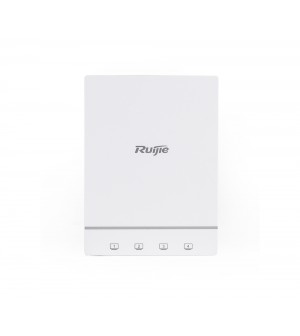

RG-AP180

Hardware specifications

Radio

Dual-radio dual-band：

Radio 1: 2.4G 11ax: 2×2 MIMO

Radio 2: 5G 11ax: 2x2 MIMO

Protocol

Support concurrent 802.11a/n/ac/ax and 802.11b/g/n/ax

Operating Bands

802.11b/g/n/ax ：2.4G ~ 2.483GHz

802.11a/n/ac/ax ： 5.150～5.350GHz，5.47～5.725GHz，5.725～5.850GHz (vary depending on different countries)

Spatial Streams

4 spatial streams, 2x2 MIMO

Max Throughput

Maximum throughput of 2.4G: 574Mbps

Maximum throughput of 5G: 1.2Gbps

Maximum throughput per AP: 1.775Gbps

Modulation

11b：DSS:CCK@5.5/11Mbps,DQPSK@2Mbps,DBPSK@1Mbps

11a/g：OFDM:64QAM@48/54Mbps,16QAM@24Mbps,QPSK@12/18Mbps,BPSK@6/9Mbps

11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM

11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM

11ax: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM

Transmit Power

≤100mw（20dBm, radio transmit power only）

Dimensions

116mm * 86mm *40mm

Weight

0.37kg

Service Ports

Front：
4 10/100/1000Mbps Ethernet ports
Rear：
1 10/100/1000Mbps uplink port

Power Supply

Support PoE

Support local power supply (DC Power adapters should be purchased from third-party vendors separately if needed)

11ax Feature

Support 802.11ax

Support MU-MIMO

Management Port

1 Micro USB port (hidden)

Reset

Support (hidden)

LED indicator

Support (hidden)

The indicator can be switched off

Built-in Antenna

Built-in low-radiation omnidirectional antenna (antenna gain 3.5dBi)

IoT Protocol

Support Bluetooth5.0（BLE）, Zigbee

Power Consumption

＜10W

IP Rating

IP41

Anti-theft

Standard: ordinary screws

Color of AP Enclosure

White

Wi-Fi Alliance

· Wi-Fi CERTIFIED™ a, b, g, n, ac

· Wi-Fi CERTIFIED 6™

· WPA3™-Enterprise, Personal

· Wi-Fi Enhanced Open™

· Wi-Fi Agile Multiband™

· WMM®

Relevant Standard

Safety Standard

EN/IEC 62368-1

EMC Standard

EN301 489, EN55032, EN55035

Health Standard

EN 62311

Radio Standard

EN300 328, EN301 893

Environment

Operating temperature：0°C～45°C

Storage temperature：-40°C～70°C

Operating humidity：5％～95％（non-condensing）

Storage humidity：5％～95％（non-condensing）

MTBF

250,000 hours

Installation Mode

Compatible with UK/US/EU

Junction box

*Universal Mount Kit need to purchase separately for US/EU junction box

Software Specifications

WLAN

Maximum clients per AP

1024

BSSID capacity

8（recommended to configure a maximum of 5 BSSIDs per radio in actual application）

SSID hiding

Support

Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID

Support

Remote Intelligent Perception Technology (RIPT)

Support

Intelligent load balancing based on the number of users or traffic

Support

STA control

SSID/radio-based

Bandwidth control

STA/SSID/AP-based speed control

Security

PSK, Web, and 802.1x authentication

Support

Data encryption

WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)

QR code authentication

Support (integration with RG-WS series wireless controller)

SMS authentication

Support (integration with RG-WS series wireless controller)

PEAP authentication

Support (integration with RG-WS series wireless controller)

Data frame filtering

Whitelist, static/dynamic blacklist

User isolation

Support

Rogue AP detection and countermeasure

Support

Dynamic ACL assignment

Support

RADIUS

Support

CPU Protection Policy (CPP)

Support

Network Foundation Protection Policy (NFPP)

Support

Wireless Intrusion Detection System (WIDS)

Support

Routing

IPv4 address

Static IP address or DHCP

IPv6

Support

Multicast – IGMP Snooping

Support

Management and Maintenance

Supported wireless LAN controllers

Ruijie WS Series Wireless Controller

Ruijie MACC-Base Software Controller

Ruijie Cloud (Public Cloud)

Management protocol

Telnet, SSH, TFTP, Web

Wireless Intelligent AI Optimization Service (WIS)

Support

SNMP

SNMPV1,V2c,V3

Syslog / Debug

Support

FAT/FIT/MACC mode switching

Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management
