สถานะของสินค้า : สินค้าพร้อมส่ง

8,600 บาท


- Small Business/Enterprise Headquarter/Branch office

- 2x100Mbps WAN + 3x100Mbps Switch LAN

- Network processor, 32MB Memory

- Maximum 5,000 sessions, 20~30Mbps Throughput

- Capacity: 30~50 PCs in LAN

- Support Load balance, QoS, Firewall, Access Control, Block QQ, QnoDDNS, Log, SNMP, IPSec/PPTP VPN


Network Processor Network Processor Flash 8MB / 32MB
WAN Port 2 LAN Port 1(WAN2/DWZ)
DMZ Port 3 USB Port 2
Session 5,000 NAT Throughput 30Mbps
VPN Throughput 3DES/5Mbps Network Detection & Fail Over
Load Balance Mode Session / Adavanced Session / IP Inbound Load Balance -
DHCP IP Assignment Fixed IP Assignment
Transparent Bridge NAT Plus Router Mode -
Smart QoS - Guarantee & Maximum Bandwidth
Session Control by IP - VPN Tunnel 10
Authentication MD5/SHA1 Encryption DES/3DES/AES
VPN Pass-through NAT Traversal( NATT)
Heart Beat Detection QVM SmartLink VPN Client
QnoKey Server - QnoSoftKey Server -
PPTP VPN Server 10 Block Java/Cookies/ActiveX/HTTP Proxy -
Block QQ MSN Yahoo Messenger Block File -
Block P2P - Block Social Network -
Block Video Online - Block Skype -
Capative Portal Numbers of DHCP Assignable IP Class C
One-to-One NAT Multiple-to-One NAT -
DMZ/Virtual Server Routing Static
Firewall VLAN(Port-Based) -
Mirror Port - QnoDDNS / DynDNS
IP & Service Port Group - E-Bulletin -
SNMP( v1, v2) - ORTG Graphic Statistics -
HA (High Availability) - Support QnoSniff -
Wireless Broadband - Power Saving Mode -
Cost Counting - SMS -
Recommended PC Number 30-50 Dimensions 240x160x44 mm

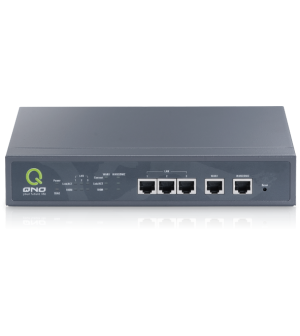

QVF 7301 is a QoS VPN Firewall Router for Small Business & Internet Cafe. It can realize bandwidth aggregation by connecting to additional ADSL or fiber optical line as containing 2-WAN design. In the meantime, 2-WAN delivers the functionality of Load Balancing that is, according to sessions or IP addresses, each line gets the average utilization at the same time, realizing an optimization of bandwidth usage. Also, with the support of hardware NAT acceleration, users could visit the internet more quickly even when there are around 30 PCs in LAN.

Besides, FQR 7301 is a highly integrated device with powerful firewall and management system. It also supports multiple VPN protocols such as IPSec/PPTP/SmartLink, which helps users establishing VPN more flexibly. This router’s easy-to-use GUI management interface allows you to manage the whole network without the requirement of deep network knowledge. You can easily control the utilization of valuable network resources.

High-speed & High-efficiency
  • Embedded with network processor to reach 20~30Mbps bi-direction transmitting speed.
  • Supporting 5,000 sessions and being capable to handle 30~50 PCs without stagnation.
  • Build-in 2 WAN ports, 3 LAN ports to help businesses build efficient network.
Multi-WAN Ports
  • Realizing Bandwidth Averaging with 2 WAN ports and reserving the possibility of bandwidth expansion in the future.
  • Supporting Optical Fiber or ADSL access/PPPoE/Cable Modem/FTTX and other kinds of protocols.
  • Supporting 3 Balance modes: Session-based, IP-based, and Strategy Routing to optimize bandwidth usage. Strategy Routing specially solves cross-net bottleneck problem for different ISPs access.
  • Featured auto line back-up: switch all the sessions from dropped line automatically to another to keep an always on-line network.
  • Providing up to 10 IPSec VPN connections; IPSec/3DES's operational efficiency reaching 5Mbps.
  • Providing comprehensive IPSec VPN with DES/3DES/AES encryptions, MD5/SHA1 identifications and automatically/manually IKE Pre-Share Key exchanges.
  • Supporting IPSec VPN in Gateway to Gateway or Client to Gateway.
  • Supporting Group VPN to allow dynamic users building VPN connections with Headquarters.
  • Supporting NATT to translate IPSec ESP packets into UDP packets to pass through SOHO routers using in most of small offices.
  • Passing VPNC's authentication and collocating with other VPN devices.
  • Possessing VPN Heartbeat to maintain a more stable VPN connection and being compatible for VPN tunnels among different VPN devices.
  • Possessing SmartLink VPN: easy to finish settings by entering User Name, Password and IP address.
  • Supporting VPN backup: to switch VPN connection into another WAN port once original WAN port lost Internet access.
  • Providing up to10 PPTP VPN connections.
  • Displaying status of PPTP VPN connections.
  • Allowing using Windows2000/XP embedded PPTP client to dial to router.
QoS Bandwidth Management
  • Allocating bandwidth according to different time periods to fit into diverse network environments.
  • Prioritizing different person/group or applications in bandwidth using for a better reasonable management.
Powerful Firewall
  • Reaching superior performances with 20~30Mbps bi-direction transmitting rate with firewall enabled.
  • Supporting Stateful Packet Inspection to deny or block non-standard protocol connections aiming at Worm Blaster, Trojan, DoS Attack and other kind of threatens via dynamic detection of the network layer by filtering the passing-by packets from bi-directions in the 1st place.
Online Behavior Management
  • Deploying One-Click restricting of QQ applications to save time & energy while reserving 5 exempt groups for certain users.
  • Setting access rule and schedule to manage staffs' online behavior.
  • Supporting dynamic DNS services like QnoDDNS and DynDNS.
  • Supporting DDNS service updating synchronously to simplify the management.
Easy-to-Use System Management
  • Helping administrators to record the change/abnormal of the whole network' status and take actions according to the log information.
  • Supporting remote management by web browser with user name and password to realize router management from remote places.
  • Featured E-mail alert to notify administrators at 1st time about threatened problems to make actions.
  • Characterized easy to setup with clear configuration steps and plain GUI. Administrators can adjust the configurations quickly and simply.
Excellent in Hardware Design
  • Deploying non-fan system and excellent heat-radiating design to save the energy and maintenance, as well as avoiding fun noise.
  • Possessing 9-inch outfit.
