| DESCRIPTION |
|---|
| Description |

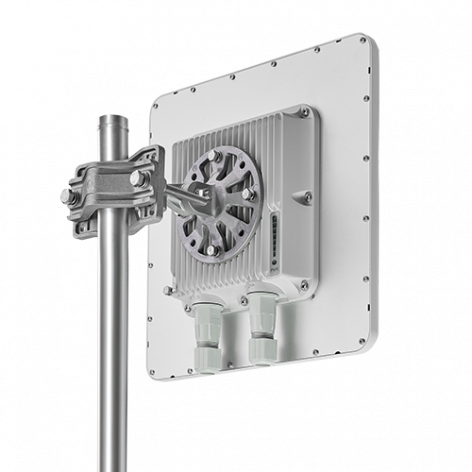

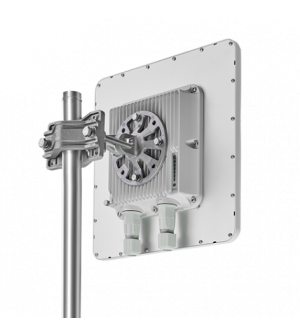

Quanta 5 Q5-23, 5 GHz point-to-point unit, net throughput up to 650 Mbps, integrated dual-pol antenna, 23 dBi, 10x10 deg |
| Net throughput |
up to 650 Mbps |
| Recommended distances |
up to 40 km |
| RADIO |
|---|
| Radio technology |
MIMO 2x2 (SC-FDE) |
| Modulation coding schemes |
from QPSK 1/4 to QAM256 7/8 |
| Transmit power |
up to 27 dBm |
| Frequency range |
4900-6000 MHz |
| Channel width |
3.5, 5, 7, 10, 14, 15, 20, 28, 30, 40, 50, 56 MHz |
| Antenna |
23 dBi |
| WIRED INTERFACES |
|---|
| Wired Interfaces |
1x Combo port GigabitEthernet/SFP |
| FORM FACTOR AND DIMENSIONS |
|---|
| Outdoor Unit (ODU) |
305 x 305 x 66 mm, 1.75 kg |
