ข้อมูลเพิ่มเติม
Dimensions | ไม่ใช่ |
---|

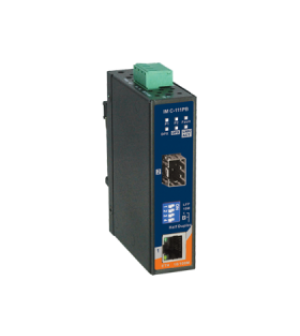

IMC-111PB
10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX | 1 |
100Base-FX SFP port | 1 |
Ethernet Standards | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow control |
Processing | Store-and-Forward |
DIP-Switch setting | DIP-Switch 1 for LFP mode selection : (ON) enable / (OFF) disable DIP-Switch 2 for Ethernet speed selection : (ON)10Mbps / (OFF) 10/100Mbps Auto-negotiate DIP-Switch 3 for Ethernet full/half duplex selection : (ON) Half-duplex / (OFF) Full/Half-Duplex Auto-negotiate DIP-Switch 4 for fiber full/half duplex selection : (ON) Half-Duplex / (OFF) Full-Duplex |
Power Indicator | Green : Power LED x 2 |
10/100Base-T(X) RJ45 Port Indicator | Green for port Link/Act – (ON) Link up / (Blinking) Acting / (OFF) Link down Amber for 100Mbps/10Mbps indicator – (ON) Link at 100Mbps / (OFF) Link at 10Mbps Green for port duplex indicator – (ON) Full-Duplex / (OFF) Half-Duplex |
100Base-FX Fiber Port Indicator | Green for fiber port Link/Act - (ON) Link up / (Flash) Acting / (OFF) Link down Green for fiber port duplex indicator – (ON) Full-Duplex / (OFF) Half-Duplex |
LFP status indicator | Amber LED – (ON) LFP function fail / (OFF) LFP function disable |
Input Power | Dual 12~48 VDC power input at 4-pin terminal block |
Power Consumption (Typ.) | 2.2 Watts |
Overload Current Protection | Present |
Reverse Polarity Protection | Present on terminal block |
Enclosure | IP-30 |
Dimensions (W x D x H) | 26.1 (W) x 70 (D) x 95 (H)mm (1.03 x 2.76 x 3.74 inch) |
Weight (g) | 213 g |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Operating Temperature | -40 to 75°C (-40 to 167°F) |
Operating Humidity | 5% to 95% Non-condensing |
EMI | FCC Part 15, CISPR (EN55022) class A |
EMS | IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11 |
Shock | IEC60068-2-27 |
Free Fall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Safety | EN60950-1 |
Warranty | 5 years |
