สถานะของสินค้า : สินค้าพร้อมส่ง

0 บาท

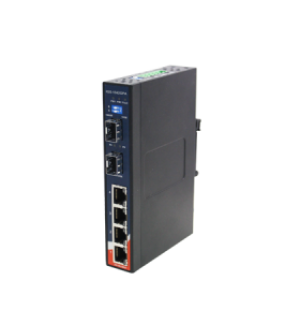

- Provide 4x10/100/1000Base-T(X) and 2x100/1000Base-X SFP ports

- Supports Jumbo frame up to 9KBytes

- SFP port support 100Base-FX and 1000Base-X speed

- Support auto-negotiation and auto-MDI/MDI-X

- Support store and forward transmission

- Supports flow control

- Rigid IP-30 housing design

- DIN-Rail and wall mounting enabled


Dimensions ไม่ใช่


10/100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX 4
100/1000Base-X SFP port 2
Ethernet Standards  IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow control
MAC Table 1K MAC addressessses
Processing Store-and-Forward
Power indicator Green : Power LED x 2
Fault Indicator Amber : Indicates PWR1 or PWR2
failure occurred
10/100/1000Base-T(X) RJ45 port indicator  Green for port Link/Act
Amber for 100Mbps indicator
100/1000Base-X SFP port indicator (P5 ~ P6) Green for port Link/Act.
DIP-Switch 1/2 DIP-Switch 1 (ON) and DIP-Switch 2 (ON) : SFP speed setting to 100Mbps
DIP-Switch 1 (OFF) and DIP-Switch 2 (OFF) : SFP speed setting to 1000Mbps
DIP-Switch 1 Power-1 failed warning : (ON) enable, (OFF) disable
DIP-Switch 2 Power-2 failed warning : (ON) enable, (OFF) disable
Relay Relay output to carry capacity of 1A at 24VDC
Redundant Input Power Dual DC inputs. 12~48VDC on 6-pin terminal block.
Power consumption (Typ.) 6.4 Watts
Overload current protection Present
Reverse polarity protection Present
Enclosure IP-30
Dimensions (W x D x H) 26.1 (W) x 94.9 (D) x 144.3(H) mm
(1.03 x 3.74 x 5.68 inches)
Weight (g) 410 g
Storage Temperature -40 to 85°C (-40 to 185°F)
Operating Temperature -40 to 70°C (-40 to 158°F)
Operating Humidity 5% to 95% Non-condensing
EMI FCC Part 15, CISPR (EN55022) class A
EMS IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8,
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
Warranty 5 years
