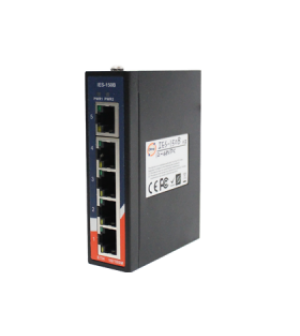

IES-150B

สถานะของสินค้า : สินค้าพร้อมส่ง

0 บาท
หรือ

รายละเอียดโดยย่อ

- Supports 5 ports 10/100 Base-T(X)

- Supports auto-negotiation and auto-MDI/MDI-X

- Supports store-and-forward transmission

- Supports flow control

- Compact size for easily installation

- Rigid IP-30 housing design

- DIN-Rail and wall mounting enabled

ข้อมูลเพิ่มเติม

Dimensions ไม่ใช่

IES-150B

10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX 5
Ethernet Standards IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3x for Flow control
MAC Table 2048 MAC addresses
Processing Store-and-Forward
Power Indicator Green : Power LED x 2
10/100Base-T(X) RJ45 port Indicator Green for port Link/Act. Amber for Duplex/Collision
Input Power Dual 12~48 VDC power input on 4-pin terminal block
Power Consumption (Typ.) 3 Watts
Overload Current Protection Present
Reverse Polarity Protection Present
Enclosure IP-30
Dimensions (W x D x H) 26.1 (W) x 70 (D) x 95 (H)mm
(1.03 x 2.76 x 3.74 inch)
Weight (g) 205 g
Storage Temperature -40 to 85°C (-40 to 185°F)
Operating Temperature -40 to 70°C (-40 to 158°F)
Operating Humidity 5% to 95% Non-condensing
EMI FCC Part 15, CISPR (EN55022) class A
EMS IEC61000-4-2 (ESD), IEC61000-4-3 (RS),
IEC61000-4-4 (EFT), IEC61000-4-5 (Surge),
IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
Warranty 5 years
