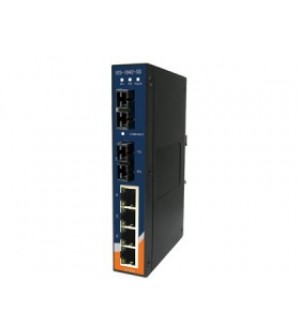

IES-1042FX-SS-SC
| 10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX | 4 |
| Fiber Ports Number | 2 |
| Fiber Ports Standard | 100Base-FX |
| Fiber Mode | Single-mode |
| Fiber Diameter (μm) | 9/125 μm |
| Fiber Optical Connector | SC |
| Typical Distance (km) | 30 km |
| Wavelength (nm) | 1310 nm |
| Max. Output Optical Power (dBm) | -8 dBm |
| Min. Output Optical Power (dBm) | -15 dBm |
| Max. Input Optical Power (Saturation) | 0 dBm |
| Min. Input Optical Power (Sensitivity) |
-34 dBm |
| Link Budget (dB) | 19 dB |
| Ethernet Standards | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow control |
| MAC Table | 2048 MAC addresses |
| Processing | Store-and-Forward |
| Power Indicator | Green : Power LED x 2 |
| Fault Indicator | Amber : Indicates PWR1 or PWR2 failure occurred |
| 10/100Base-T(X) RJ45 Port Indicator | Green for port Link/Act. Amber for Duplex/Collision |
| Fiber Port LED | Green for port Link/Act. |
| Relay | Relay output to carry capacity of 1A at 24VDC |
| Redundant Input Power | Dual DC inputs: 12~48VDC on 6-pin terminal block |
| Power Consumption (Typ.) | 7 Watts |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Enclosure | IP-30 |
| Dimensions (W x D x H) | 26.1(W) x 94.9(D) x 144.3(H) mm (1.03 x 3.74 x 5.68 inch.) |
| Weight (g) | 382 g |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Operating Humidity | 5% to 95% Non-condensing |
| EMI | FCC Part 15, CISPR (EN55022) class A |
| EMS | IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Safety | EN60950-1 |
| Warranty | 5 years |
