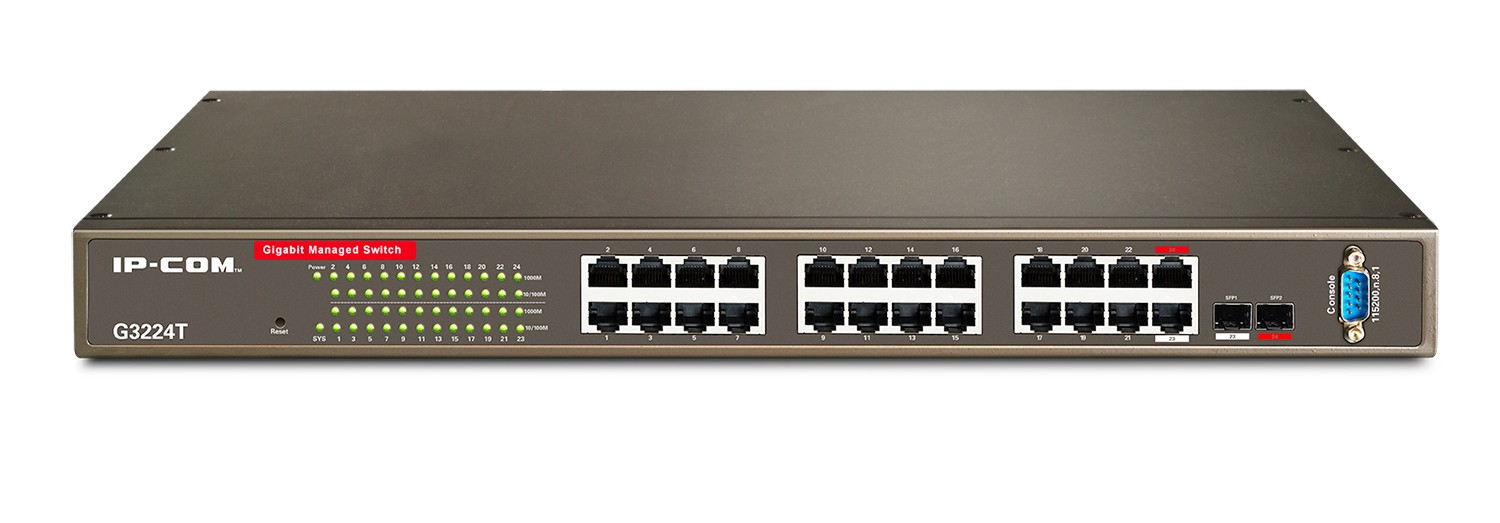

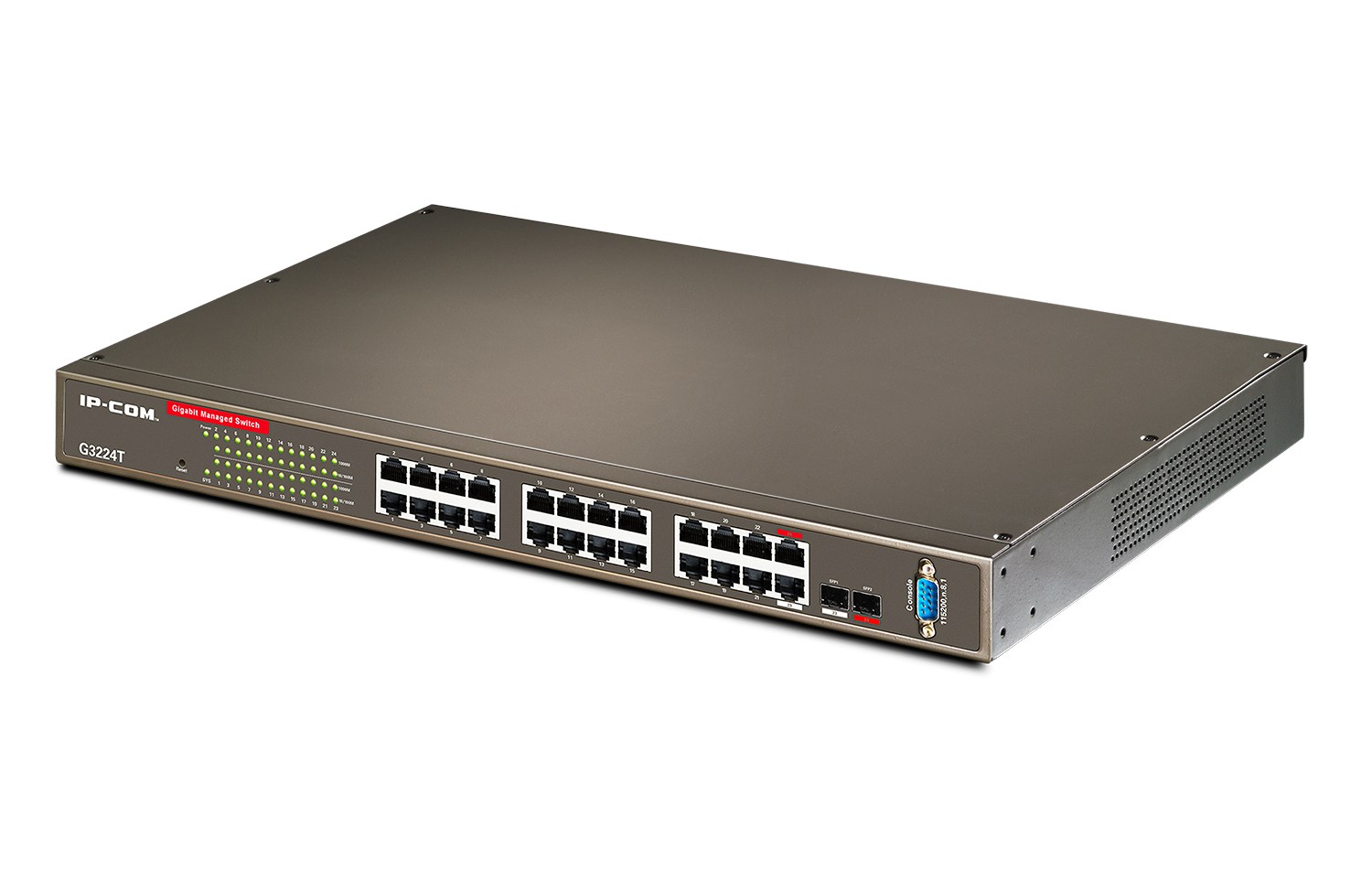

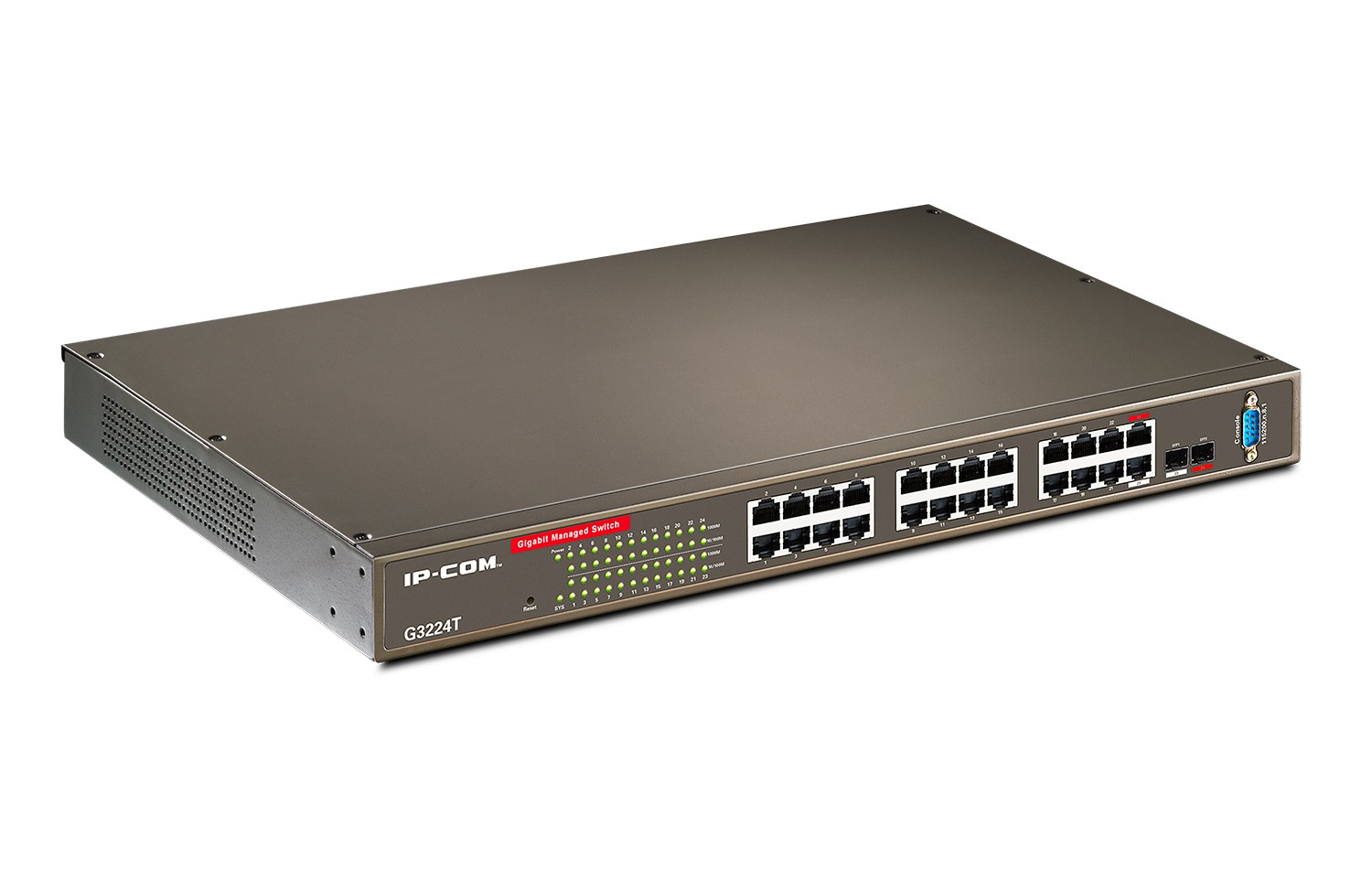

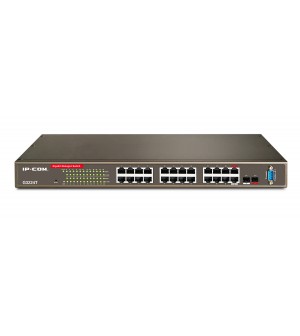

G3224T
| Model | G3224T |
| Description | 10/100/1000 Smart Switch |
| Login IP address | 192.168.0.1 |
| User name\Password | For administrator: admin\admin For user: user\user |
| Standard and protocol supported | IEEE 802.3、IEEE 802.3u、IEEE 802.3z、IEEE 802.3ab、IEEE 802.3x、IEEE 802.1D、IEEE 802.1W、IEEE 802.1Q、IEEE 802.1p、IEEE 802.1x、 IEEE 802.3 NWay、SNMP |
| Backplane bandwidth | 56Gbps |
| Forwarding mode and capacity | Linear-speed forwarding up to 48Gbit/s |
| MAC Address entries | 8K |
| Dimension | 440*284*44mm(LXWXH) |
| 3C | Yes |
| Relative Humidity(Operational) | 10%～90% RH（noncondensing） |
| Relative Humidity(Storage) | 5%～95% RH（noncondensing） |
| Operating Temperature | 0℃～45℃ |
| Storage Temperature | -40℃～70℃ |
| Power Supply | AC 100～240V 1.2A(Max) 50～60Hz |
| Power consumption | <20W |
| Port & Module | 24 GE Port and 2 SFP(combo) |
| Indicators | POWER; SYS; LINK/ACT; SPEED; SPF |
| Connector and cabling | CAT 5e 1000Base-SX: MMF(Multimode fiber)， 1000Base-LX：SMF（Single-mode fiber） |
