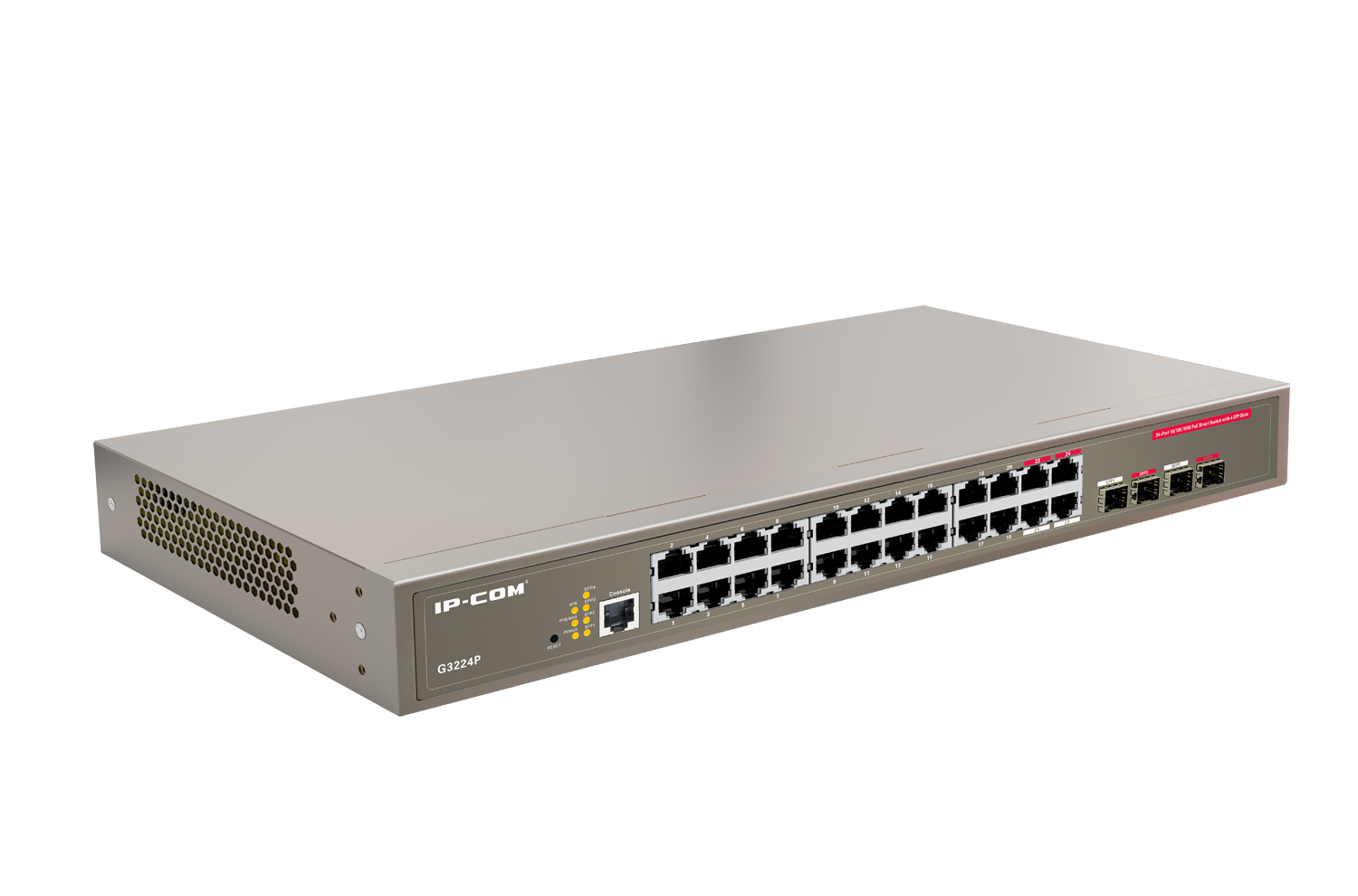

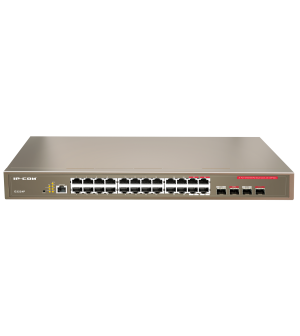

G3224P
| Model | G3224P |
| Description | 24-Port 10/100/1000 PoE Manage Switch |
| Standard and protocol | IEEE 802.3、 IEEE 802.3u、IEEE 802.3z、IEEE 802.3ab、IEEE 802.3x、 IEEE 802.1D、IEEE 802.3af、IEEE 802.3at |
| linear-speed exchange on the second layer | linear-speed of all ports up to 35.7Mpps |
| Backplane bandwidth | 56Gbps |
| Performance | Store and forward Yes |
| Exchange capacity | 56Gbit/s |
| MAC Address entries | 8K Support setting the maximum number of MAC addresses for learning |
| Port and Module | Fixed ports 24 GE Ports 1 console 4 SFP (combo) |
| Optional modules | SFP modules |
| Indicators | POWER,SYS,LINK/ACT,SPEED,SFP,POE |
| Optional power supply | Power supply module Providing 24 port under 802.3af(15.4W) or 12 ports under 802.3at(30W). PoE through 1 2 3 6 pin |
| Voltage input range | AC 100V~240V ；50/60Hz |
| Dimension | 440*284*44mm (L*W*H) |
| Weight | 5kg |
| Power consumption | Total power consumption up to 450W PoE consumption up to 370W |
| Operating temperature | 0ºC～45ºC |
| Storage temperature | -40ºC～70ºC |
| Relative humidity | Operational:10%～95%（noncondensing） |
| Relative humidity | Storage:10%～95%（noncondensing） |
| Link aggregation | Support LACP Support manual link aggregation Support up to 12 link aggregation groups and up to 16 GE ports per link aggregation group |
| PoE management | Support setup of PoE and power adjustable by priority Support over temperature protection for PoE module Support graphical management, detection of PD equipment and setting of the power consumption |
| network protocol | Support STP/RSTP/MSTP Support looped Network for devices |
| VLAN | Support VLAN(4K) based on ports and stardand Support Voice VLAN, VLAN Mapping, VLAN VPN（QinQ） |
| DHCP | Support DHCP Snooping、DHCP Relay/Client/Server Support DHCP Snooping Option82/DHCP Relay Option82 |
| QoS/ACL | Support ACL Provide advanced security strategies and L2~L4 packet filter Support ACL based on Time Range |
| Support QoS | Support message transmission for ports and limitation of speed Support redirect message and CAR Support 8 ports for output sequence Support SP&WRR Support remark for 802.1p/DSCP priority Support management for QoS Profile |
| Security service | Support management for user classification and password protection Support IEEE 802.1X authentication Support centralized MAC address authentication Support intrusion detection of ARP and protection of IP source address Support SSH2.0 and port isolation |
| Management and maintenance | Support downloading and upgrading through XModem/FTP/ TFTP Support configuration through CLI, Telnet, Console port Support SNMP v1/v2/v3 and WEB-based management Support RMON(Remote Monitoring) 1,2,3,9 RMON groups of MIB information Support system log, hierarchical alarm, debugging information output Support PING, Traceroute, Multicast Traceroute Support remote maintenance through telnet Support DLDP Support loopback detection |
