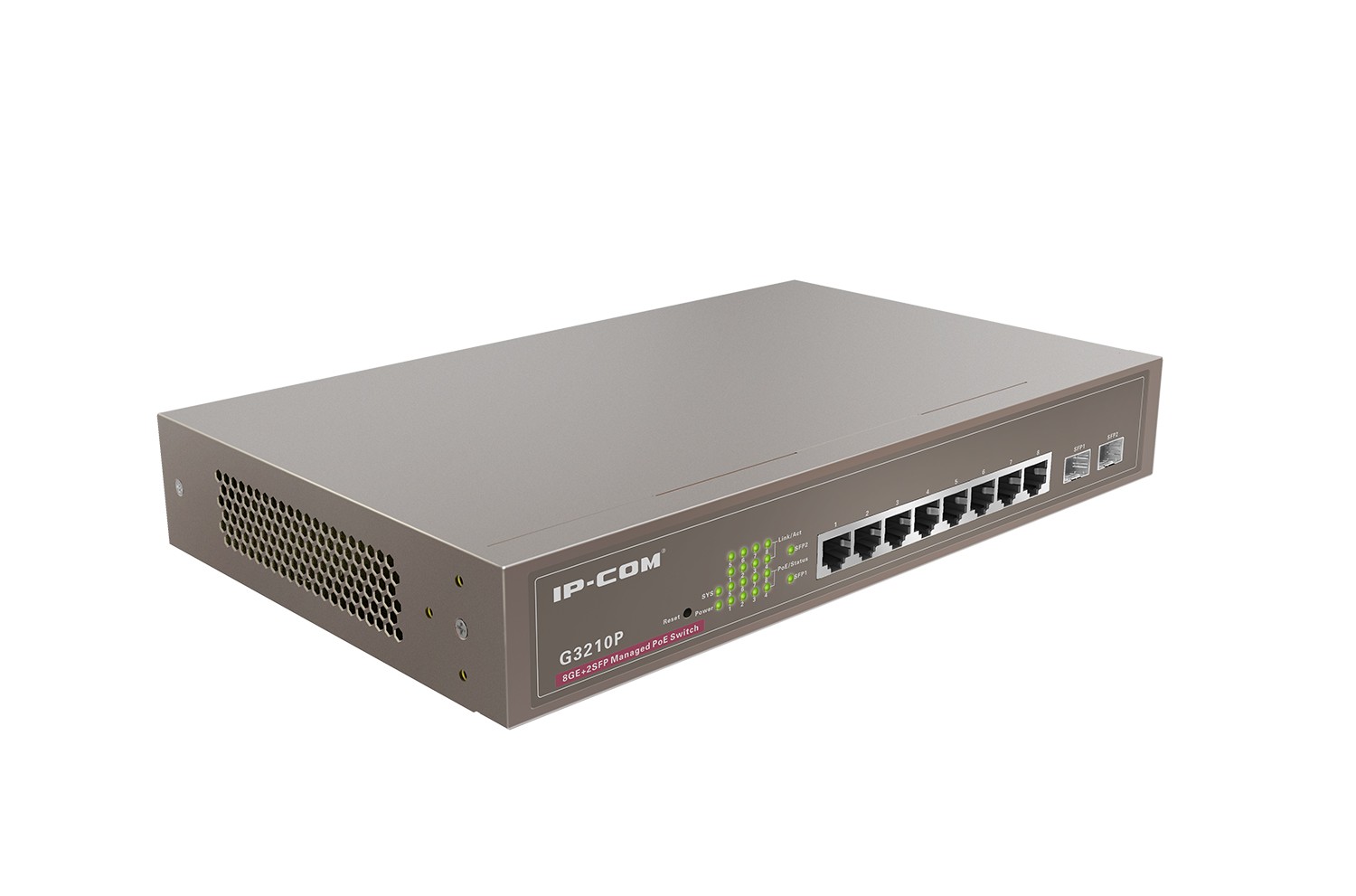

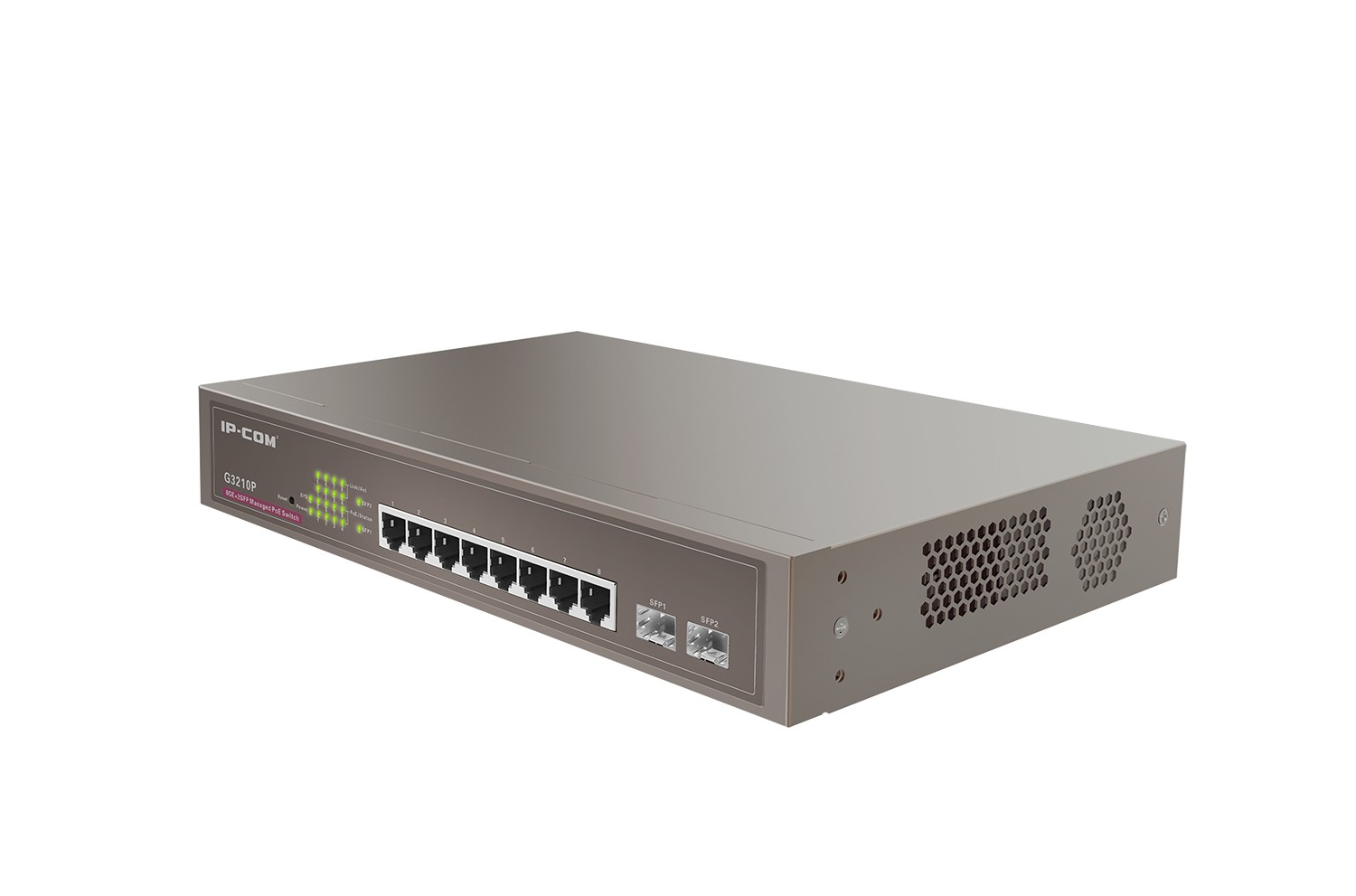

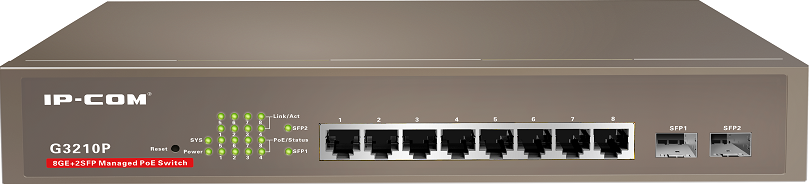

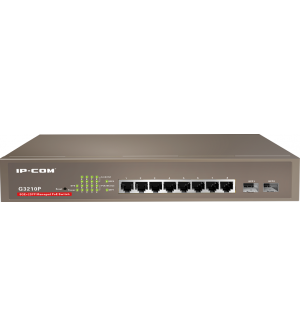

G3210P
| Model | G3210P |
| Copper Ports | 8 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots | 2 1000Base-SX/LX/BX SFP interfaces (Port-9 and Port-10) Compatible with 100Base-FX SFP |
| Switch Architecture | Store-and-Forward |
| Throughout | 14.88Mpps |
| Address Table | 8K entries, automatic source address learning and aging |
| Share Data Buffer | 1.49Mpps |
| Flow Control | IEEE 802.3x Pause Frame for Full-Duplex Back pressure for Half-Duplex |
| Jumbo Frame | 9Kbytes |
| Reset Button | < 5 seconds: System reboot > 5 seconds: Factory Default |
| Dimension | 294*178.8*44 mm(W x D x H), 1U high |
| Weight | 1.8kg |
| LED | Power,PoE-Max Link/Act per Gigabit port PoE In-Use for Port-1~ 8 |
| Power Supply | 130W |
| PoE Standard | IEEE 802.3af / at |
| PoE Power Supply Type | End-Span |
| PoE Power Output | Per Port 51V DC Max. 40 Watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 115W |
| PoE Ability | Number of PD @ 7 Watts 8 Number of PD @ 15.4 Watts 8 Number of PD @ 30.8 Watts 4 |
| Basic Management Interfaces | Telnet, Web Browser, SNMPv1, v2c |
| Port configuration | Port disable / enable Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable / enable Bandwidth control on each port Power saving mode control |
| Port Status | Display each port’s speed duplex mode, link status, Flow control status,Auto negotiation status, trunk status |
| Port Mirroring | TX / RX / Both Many to 1 monitor |
| VLAN | 802.1Q Tagged Based VLAN, up to 64 VLAN groups Q-in-Q tunneling Private VLAN Edge (PVE) MAC-Based VLAN Protocol-Based VLAN Voice VLAN Up to 10 VLAN groups, out of 160 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP / Static Trunk Supports 5 groups of 10-Port trunk support |
| QoS | Traffic classification based, Strict priority and WRR 8-Level priority for switching Port Number 802.1p priority 802.1Q VLAN tag DSCP/TOS field in IP Packet |
| IGMP Snooping | IGMP (v1/v2) Snooping, up to 200 multicast Groups IGMP Querier mode support |
| Regulation Compliance | FCC,CE,RoHS |
| Operating Temperature | 0℃~40℃ (32℉~104℉); |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing） |
