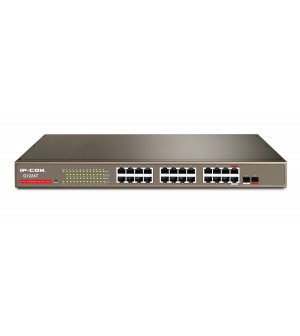

G1224T
| Model | G1224T |
| Description | 24-Port 10/100/1000 Ethernet Switch with 2 SFP slots |
| Standards | IEEE 802.3 10BASE-T,IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T,IEEE 802.3z,IEEE 802.3x, IEEE 802.3 Nway,IEEE 802.3 Nway,IEEE 802.1q,IEEE 802.1p, IEEE 802.1x,IEEE 802.1d,IEEE 802.3af |
| Port and module | 24 GE Ports 2 SFP(cobmo) |
| Indicators | POWER/SYS/LINK/ACT/SPEED/SPF |
| Connector and cabling | UTP CAT5, 5E and 6 1000Base-SX: MMF(Multimode fibre)，1000Base-LX: MMF((Multimode fibre) or SMF（Single-mode fibre） |
| Backplane bandwidth | 48Gbps |
| Forwarding Mode | Store and forward |
| MAC Address entries | 8k |
| Dimensions(L*W*H) | 440*208*44mm |
| Indicators | POWER/SYS/LINK/ACT/SPEED/SPF |
| Power supply | AC 110V～240V 50～60Hz |
| Power consumption | <18W |
| Operating temperature | 0℃ ~ 45℃ |
| Storage temperature | -40℃ ~ 70℃ |
| Relative humidity(Operational) | 10%~95%（noncondensing) |
| Relative humidity(Storage) | 5%~95%（noncondensing) |
| Heat dissipation | Built-in fan |
