ข้อมูลเพิ่มเติม
| Dimensions | ไม่ใช่ |
|---|

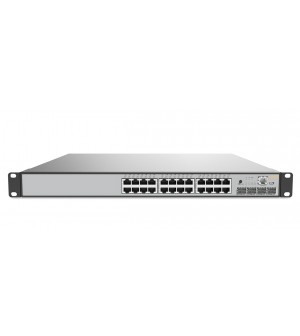

FusionSwitch PoE 24 Port
| Model | FusionSwitch PoE 24 Port |
| Port | 100/1000 RJ-45 PoE Ports SFP+ 10 Gigabit Uplink Ports RJ-45 Console Port |
24 4 1 |
| Performance | Switching Capacity Forwarding Rate Flash Memory DRAM MAC Address Table Size Jumbo Frames Auto-negotaton, Auto-MDI/MDIX |
176 Gbps 130 Mpps 256 MB 512 MB 16 K 9 KB √ |
| Mechanical | Rack Space Dimension (W x D x H) mm Weight |
19" 440 x 220 x 44 4.53 kg (10.0 lb) |
| PoE | PoE Support on all Gigabit ports based on IEEE 802.3af PoE+ based on IEEE 802.3at Auto disable afer exceeding power budget Dynamic Power Allocaton PoE Power Budget |
√ √ √ √ 370 W |
| Power Supply | 100-240 VAC, 50-60 Hz Max System Power Consumpton (Wats) |
√ 50 W |
| Environmental | Operatng Temperature Storage Temperature Operatng Humidity (non-condensing) Storage Humidity (non-condensing) Environmental Regulaton compliance: WEEE Environmental Regulaton compliance: RoHS |
0°C to 50°C (32°F to 122°F) -40°C to 70°C (-40°F to 158°F) 10% to 90% 10% to 90% √ √ |
| Certficaton | FCC Class A CE Safety Compliance: CB Safety Compliance: UL |
√ √ √ √ |
