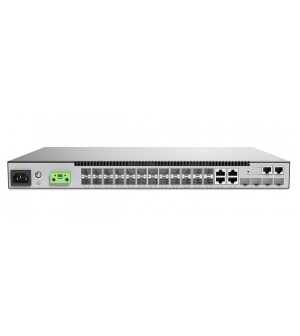

FusionSwitch Fiber 24 port
| Model | FusionSwitch Fiber 24 port |
| Port | 100/1000 SFP Ports 100M RJ-45 Port (outband management) 10/100/1000 Combo Ports SFP+ 10 Gigabit Uplink Ports RJ-45 Console Port |
20 1 4 4 1 |
| Performance | Switching Capacity Forwarding Rate Flash Memory DRAM MAC Address Table Size Jumbo Frames Auto-negotiation, Auto-MDI/MDIX |
128 Gbps 95 Mpps 256 MB 512 MB 16 K 9 KB √ |
| Mechanical | Rack Space Dimension (W x D x H) mm Weight |
19" 440 x 220 x 44 2.82 kg (6.22 lb) |
| Power Supply | AC: 100-240 VAC, 50-60 Hz DC: 48-60 VDC Max System Power Consumption (Watts) |
√ √ 37.3 W |
| Environmental | Operating Temperature Storage Temperature Operating Humidity (non-condensing) Storage Humidity (non-condensing) Environmental Regulation compliance: WEEE Environmental Regulation compliance: RoHS |
0°C to 50°C (32°F to 122°F) -40°C to 70°C (-40°F to 158°F) 10% to 90% 5% to 95% √ √ |
| Certification | FCC Class A CE Safety Compliance: CB Safety Compliance: UL |
√ √ √ √ |
