สถานะของสินค้า : สินค้าพร้อมส่ง

85,600 บาท

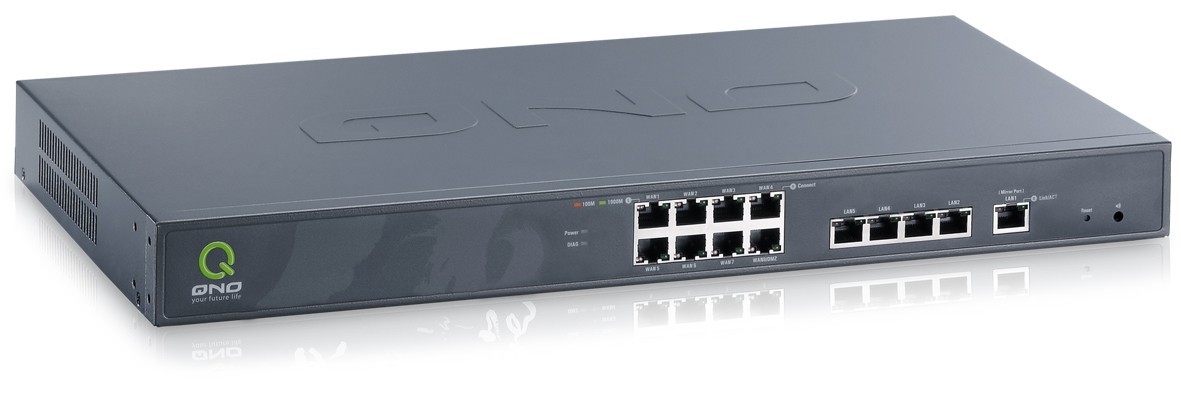

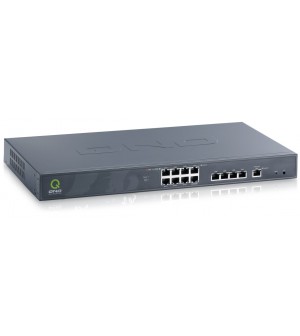

- Dual-Core Gigabit Multi-WAN QoS Firewall Router

FQR7203 is a QoS Firewall router for Large Business. It can realize bandwidth aggregation by connecting to additional ADSL or fiber optical line as containing 5-WAN design.


Network Processor MIPS64 Advanced Processor Flash 32MB / 1GB
WAN Port 5 (Gigabit) DMZ Port 1 (WAN5/DMZ) (Gigabit)
LAN Port 8 (Gigabit) USB Port -
Session 300,000 NAT Throughput 2Gbps
Network Detection & Fail Over Load Balance Mode Session / Adavanced Session / IP
Strategic Routing Inbound Load Balance ●*
DHCP IP Assignment Fixed IP Assignment
Transparent Bridge NAT Plus Router Mode
Smart QoS Guarantee & Maximum Bandwidth
Scheduling Future Session Control by IP
Bi-direction ARP Binding Future SPI/DoS Detect
URL/Keyword Filter - Block Java/Cookies/ActiveX/HTTP Proxy -
Block QQ MSN Yahoo Messenger - Block File -
Block P2P - Block Social Network -
Block Skype - Block Video Online -
Numbers of DHCP Assignable IP 4 Class C One-to-One NAT
Multiple-to-One NAT DMZ/Virtual Server
UPnP Support DNS Local Database Future
Routing Static / RIPI / II VLAN(Port-Based)
Mirror Port QnoDDNS / DynDNS
Simultaneous Multiple DDNS Deployment IP & Service Port Group
E-Bulletin Future SNMP( v1, v2)
Configuration Backup/Recovery HA (High Availability) -
Wireless Broadband - Power Saving Mode -
Cost Counting - SMS -
System/Firewall Logging Email Alarm Future
ORTG Graphic Statistics Support QnoSniff ●*
Application Optimization - DoS Prevention by ACL -
Recommended PC Number 500-750 Dimensions 440x255x44mm


FQR7203 is a QoS Firewall router for Large Business. It can realize bandwidth aggregation by connecting to additional ADSL or fiber optical line as containing 5-WAN design. In the meantime, 5-WAN delivers the functionality of Load Balancing that is, according to sessions or IP addresses, each line gets the average utilization at the same time, realizing an optimization of bandwidth usage. Also, with the support of hardware NAT acceleration, users could visit the internet more quickly even when there are around 500 PCs in LAN.

Besides, FQR 7203 is a highly integrated device with exclusive SmartQoS, powerful firewall and management system. This router’s easy-to-use GUI management interface allows you to manage the whole network without the requirement of deep network knowledge. You can easily control the utilization of valuable network resources.

High-speed & High-efficiency
  • Embedded with MIPS64 advanced dual-core network processor which is able to handle 2 billion instructions to reach 2Gbps bi-direction transmitting speed.
  • Supporting 300,000 sessions and being capable to handle 300~400 PCs without stagnation.
  • Build-in 5 WAN ports, 8 LAN ports to help businesses build gigabit backbone network.
  • Featured Qno exclusive Green Tunnel to accelerate packet transmitting speed in times.
Multi-WAN Ports
  • Realizing Bandwidth Averaging with 5 WAN ports and reserving the possibility of bandwidth expansion in the future.
  • Supporting Optical Fiber or ADSL access/PPPoE/Cable Modem/FTTX and other kinds of protocols.
  • Supporting 3 Balance modes: Session-based, IP-based, and Strategy Routing to optimize bandwidth usage. Strategy Routing specially solves cross-net bottleneck problem for different ISPs access.
  • Featured auto line back-up: switch all the sessions from dropped line automatically to another to keep an always on-line network.
QoS Bandwidth Management
  • Featured Smart QoS, dynamic bandwidth management, to automatically control P2P and video downloading and other misusages to avoid bandwidth insufficient.
  • Allocating bandwidth according to different time periods to fit into diverse network environments.
  • Supporting priority QoS to set bandwidth level for different person/group or applications for a better reasonable management.
  • Featured exclusive Qno L7 Web QoS to set bandwidth for different web applications, avoiding one application taking up too much bandwidth to influencing other services.
Powerful Firewall
  • Reaching superior performances with 2Gbps bi-direction transmitting rate with firewall enabled.
  • Supporting Stateful Packet Inspection to deny or block non-standard protocol connections aiming at Worm Blaster, Trojan, DoS Attack and other kind of threatens via dynamic detection of the network layer by filtering the passing-by packets from bi-directions in the 1st place.
  • Featured Auto ARP Bi-biding in an integrated managing UI to simplify the cumbersome configurations in preventing the ARP attack and improve the efficiency to save the maintenance cost.
Online Behavior Management
  • Deploying One-Click restricting of QQ, MSN, and P2P applications to save time & energy while reserving 5 groups exempting for certain users.
  • Allowing setting access rule and schedule to manage staffs' online behavior.
  • Supporting file block of Exe、Flash、Jpeg、Mp3、Pdf、Png、Rar、Zip and so on to avoid bandwidth misusage during working hours.
  • Supporting dynamic DNS services like QnoDDNS and DynDNS.
  • Support DDNS service updating synchronously to simplify the management and effort.
Easy-to-Use System Management
  • Embedded Mirror Port to connect with monitoring devices such as QnoSniff or other familiar information filtering systems to monitor online behavior.
  • Helping administrators to record the change/abnormal of the whole network' status and take actions according to the log information.
  • Supporting remote management by web browser with user name and password to realize router management from remote places.
  • Featured E-mail alert to notify administrators at 1st time about threatened problems to make actions.
  • Characterized easy to setup with clear configuration steps and plain GUI. Administrators can adjust the configurations quickly and simply.
Excellent in Hardware Design
  • Deploying non-fan system and excellent heat-radiating design to save the energy and maintenance, as well as avoiding fun noise.
  • Possessing standard 19-inch outfit for standard rack.
