FQR7109

สถานะของสินค้า : สินค้าพร้อมส่ง

17,200 บาท
หรือ

รายละเอียดโดยย่อ

Small Internet Café, Hotel, School, Business, Hospital

  • 2x100Mbps WAN + 4x100Mbps LAN
  • MIPS64 Dual-Core processor, 128MB Memory
  • Maximum 30,000 sessions, 200Mbps Throughput
  • Capacity: 100~150 PCs in LAN
  • Support Load balance, QoS, Smart QoS, L7 Web QoS, Firewall, Access Control, Block MSN & P2P Application, QnoDDNS, Log, Mirror Port, SNMP, VLAN

ข้อมูลเพิ่มเติม

Network Processor MIPS64 Dual-Core Processor Flash 32MB / 128MB
WAN Port 2 DMZ Port 1(WAN2/DMZ)
LAN Port 4 USB Port 1
Session 30,000 NAT Throughput 200Mbps
Network Detection & Fail Over Load Balance Mode Session / Adavanced Session / IP
Strategic Routing Inbound Load Balance ●*
DHCP IP Assignment Fixed IP Assignment
ADSL PPPoE PPTP
Transparent Bridge NAT Plus Router Mode
Smart QoS Guarantee & Maximum Bandwidth
Scheduling Future Session Control by IP
Bi-direction ARP Binding Future SPI/DoS Detect
URL/Keyword Filter Block Java/Cookies/ActiveX/HTTP Proxy
Block QQ MSN Yahoo Messenger Block File
Block P2P - Block Social Network -
Block Skype - Block Video Online -
Numbers of DHCP Assignable IP 4 Class C One-to-One NAT
Multiple-to-One NAT DMZ/Virtual Server
UPnP Support DNS Local Database Future
Routing Static/RIPI/II VLAN(Port-Based)
Mirror Port QnoDDNS / DynDNS
Simultaneous Multiple DDNS Deployment IP & Service Port Group
E-Bulletin Future SNMP( v1, v2)
Configuration Backup/Recovery HA (High Availability)
Wireless Broadband Power Saving Mode
Cost Counting SMS
System/Firewall Logging Email Alarm Future
ORTG Graphic Statistics Support QnoSniff ●*
Application Optimization DoS Prevention by ACL -
Recommended PC Number 100-150 Dimensions 330x160x44.5mm

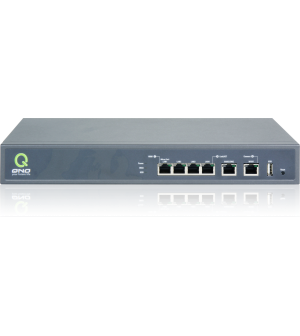

FQR7109 is a QoS Firewall router for Small Business & Internet Cafe. It can realize bandwidth aggregation by connecting to additional ADSL or fiber optical line as containing two-WAN design. In the meantime, two-WAN delivers the functionality of Load Balancing that is, according to sessions or IP addresses, each line gets the average utilization at the same time, realizing an optimization of bandwidth usage. Also, with the support of hardware NAT acceleration, users could visit the internet more quickly even when there are around 100 PCs in LAN.

Besides, FQR 7109 is a highly integrated device with 3G/4G wireless Internet, exclusive SmartQoS, powerful firewall and management system. This router’s easy-to-use GUI management interface allows you to manage the whole network without the requirement of deep network knowledge. You can easily control the utilization of valuable network resources.

High-speed & Efficiency
  • Embedded with MIPS64 dual-core network processor which is able to handle 1.2 billion instructions to reach 200Mbp bi-direction transmitting speed.
  • Supporting 30,000 sessions and being capable to handle 100~150 PCs without stagnation.
  • Build-in 2 WAN ports, 4 LAN ports, and 1 USB ports to help businesses build gigabit backbone network.
  • Featured Qno exclusive Green Tunnel to accelerate packet transmitting speed in times.
Multi-WAN Ports
  • Realizing Bandwidth Averaging with 2 WAN ports and reserving the possibility of bandwidth expansion in the future.
  • Supporting Optical Fiber or ADSL access/PPPoE/Cable Modem/FTTX and other kinds of protocols.
  • Supporting 3 Balance modes: Session-based, IP-based, and Strategy Routing to optimize bandwidth usage. Strategy Routing specially solves cross-net bottleneck problem for different ISPs access.
  • Featured auto line back-up: switch all the sessions from dropped line automatically to another to keep an always on-line network.
QoS Bandwidth Management
  • Featured Smart QoS, dynamic bandwidth management, to automatically control P2P and video downloading and other misusages to avoid bandwidth insufficient.
  • Allocating bandwidth according to different time periods to fit into diverse network environments.
  • Supporting priority QoS to set bandwidth level for different person/group or applications for a better reasonable management.
  • Featured exclusive Qno L7 Web QoS to set bandwidth for different web applications, avoiding one application taking up too much bandwidth to influencing other services.
Powerful Firewall
  • Reaching superior performances with 200Mbps bi-direction transmitting rate with firewall enabled.
  • Supporting Stateful Packet Inspection to deny or block non-standard protocol connections aiming at Worm Blaster, Trojan, DoS Attack and other kind of threatens via dynamic detection of the network layer by filtering the passing-by packets from bi-directions in the 1st place.
  • Featured Auto ARP Bi-biding in an integrated managing UI to simplify the cumbersome configurations in preventing the ARP attack and improve the efficiency to save the maintenance cost.
Online Behavior Management
  • Deploying One-Click restricting of QQ, MSN, and P2P applications to save time & energy while reserving 5 groups exempting for certain users.
  • Allowing setting access rule and schedule to manage staffs' online behavior.
  • Supporting file block of Exe、Flash、Jpeg、Mp3、Pdf、Png、Rar、Zip and so on to avoid bandwidth misusage during working hours.
DDNS
  • Supporting dynamic DNS services like QnoDDNS and DynDNS.
  • Support DDNS service updating synchronously to simplify the management and effort.
USB Wireless broadband
  • Embedded 1 USB interfaces to support 3G/3.5G USB wireless broadband card and calculate connection time or traffic load.
Easy-to-Use System Management
  • Embedded Mirror Port to connect with monitoring devices such as QnoSniff or other familiar information filtering systems to monitor online behavior.
  • Helping administrators to record the change/abnormal of the whole network' status and take actions according to the log information.
  • Supporting remote management by web browser with user name and password to realize router management from remote places.
  • Featured E-mail alert to notify administrators at 1st time about threatened and problems to make actions.
  • Charactering Easy to setup with clear configuration steps and plain GUI. Administrators can adjust the configurations quickly and simply.
Excellent in Hardware Design
  • Deploying non-fan system and excellent heat-radiating design to save the energy and maintenance, as well as avoid fun noise.
  • Possessing standard 13-inch outfit for standard frame.
