สถานะของสินค้า : สินค้าพร้อมส่ง

7,500 บาท


- Large Internet Café, Hotel, School, Business, Hospital

- 3x100Mbps WAN + 1x100Mbps LAN

- Network processor, 32MB Memory

- Maximum 5,000 sessions, 30Mbps Throughput

- Capacity: 20~50 PCs in LAN

- Support Load balance, QoS, Firewall, Access Control, Block QQ, QnoDDNS, Log, SNMP


Network Processor Network Processor Flash 8MB / 32MB
WAN Port 3 DMZ Port -
LAN Port 1 USB Port -
Session 5,000 NAT Throughput 30Mbps
Network Detection & Fail Over Load Balance Mode Session / Adavanced Session / IP
Strategic Routing Inbound Load Balance -
DHCP IP Assignment Fixed IP Assignment
Transparent Bridge NAT Plus Router Mode -
Smart QoS - Guarantee & Maximum Bandwidth
Scheduling - Session Control by IP
Bi-direction ARP Binding - SPI/DoS Detect
URL/Keyword Filter Block Java/Cookies/ActiveX/HTTP Proxy
Block QQ MSN Yahoo Messenger Block File
Block P2P - Block Social Network -
Block Skype - Block Video Online -
Numbers of DHCP Assignable IP Class C One-to-One NAT
Multiple-to-One NAT DMZ/Virtual Server
UPnP Support DNS Local Database -
Routing Static VLAN(Port-Based) -
Mirror Port - QnoDDNS / DynDNS
Simultaneous Multiple DDNS Deployment IP & Service Port Group -
E-Bulletin - SNMP( v1, v2)
Configuration Backup/Recovery HA (High Availability) -
Wireless Broadband - Power Saving Mode -
Cost Counting - SMS -
System/Firewall Logging Email Alarm
ORTG Graphic Statistics - Support QnoSniff -
Application Optimization - DoS Prevention by ACL -
Recommended PC Number 20-50 Dimensions 190x130x40mm

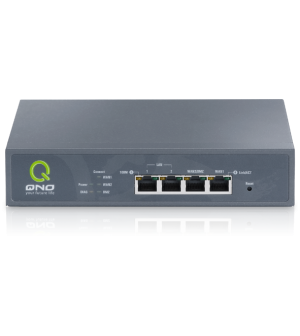

FQR7103 is a QoS Firewall router for Small Business & Internet Cafe. It can realize bandwidth aggregation by connecting to additional ADSL or fiber optical line as containing three-WAN design. In the meantime, three-WAN delivers the functionality of Load Balancing that is, according to sessions or IP addresses, each line gets the average utilization at the same time, realizing an optimization of bandwidth usage. Also, with the support of hardware NAT acceleration, users could visit the internet more quickly even when there are around 20 PCs in LAN.

Besides, FQR 7103 is a highly integrated device with powerful firewall and management system. This router’s easy-to-use GUI management interface allows you to manage the whole network without the requirement of deep network knowledge. You can easily control the utilization of valuable network resources.

High-speed & High-efficiency
  • Embedded with network processor which is able to reach 30Mbps bi-direction transmitting speed.
  • Supporting 5,000 sessions and being capable to handle 20~50 PCs without stagnation.
  • Build-in 3 WAN ports, 1 LAN ports to help businesses build gigabit backbone network.
Multi-WAN Ports
  • Realizing Bandwidth Averaging with 3WAN ports and reserving the possibility of bandwidth expansion in the future.
  • Supporting Optical Fiber or ADSL access/PPPoE/Cable Modem/FTTX and other kinds of protocols.
  • Supporting 3 Balance modes: Session-based, IP-based, and Strategy Routing to optimize bandwidth usage. Strategy Routing specially solves cross-net bottleneck problem for different ISPs access.
  • Featured auto line back-up: switch all the sessions from dropped line automatically to another to keep an always on-line network.
QoS Bandwidth Management
  • Allocating bandwidth according to different time periods to fit into diverse network environments.
  • Supporting priority QoS to set bandwidth level for different person/group or applications for a better reasonable management.
Powerful Firewall
  • Reaching superior performances with 30Mbps bi-direction transmitting rate with firewall enabled.
  • Supporting Stateful Packet Inspection to deny or block non-standard protocol connections aiming at Worm Blaster, Trojan, DoS Attack and other kind of threatens via dynamic detection of the network layer by filtering the passing-by packets from bi-directions in the 1st place.
Online Behavior Management
  • Deploying One-Click restricting of QQ to save time & energy while reserving 5 groups exempting for certain users.
  • Allowing setting access rule and schedule to manage staffs' online behavior.
  • Supporting dynamic DNS services like QnoDDNS and DynDNS.
  • Support DDNS service updating synchronously to simplify the management and effort.
Easy-to-Use System Management
  • Helping administrators to record the change/abnormal of the whole network' status and take actions according to the log information.
  • Supporting remote management by web browser with user name and password to realize router management from remote places.
  • Featured E-mail alert to notify administrators at 1st time about threatened problems to make actions.
  • Characterized easy to setup with clear configuration steps and plain GUI. Administrators can adjust the configurations quickly and simply.
Excellent in Hardware Design
  • Deploying non-fan system and excellent heat-radiating design to save the energy and maintenance, as well as avoiding fun noise.
