- 24 10/100 Mbps Base-TX RJ45 port; 1 10/100/1000 Mbps Base-T RJ45 port; 1 100/1000Base-X SFP port.

- Ports 1-24: IEEE 802.3af/at PoE ports; maximum power output of each PoE port: 30 W; maximum power output of the switch: 225 W.

- 13-inch desktop size, 1U height, rack mountable.

- Hardware DIP switch for ion among the CCTV, Standard, VLAN, and Extend modes.

- The Extend mode features 1-8 port transmission distance of up to 250m at 10 Mbps.

- Hardware DIP switch to isolate ports to prevent broadcast storm and defend against DHCP spoofing.


Dimensions ไม่ใช่ Radio mode ไม่ใช่
WLAN Standard ไม่ใช่ Operating mode ไม่ใช่
Radio Frequency Band ไม่ใช่ Receive Sensitivity ไม่ใช่
Channel Size ไม่ใช่ Antenna Type ไม่ใช่
Gain ไม่ใช่ Wired Interface ไม่ใช่
Built in Surge Protection ไม่ใช่ Operation Mode ไม่ใช่
Wan ไม่ใช่ NAT ไม่ใช่
Static routing ไม่ใช่ DHCP ไม่ใช่
Port Forwarding ไม่ใช่ VLAN ไม่ใช่

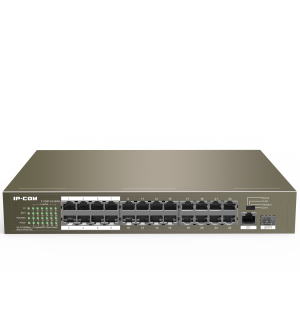

Model  F1126P-24-250W
Standard&Protocol IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE 802.3af、
IEEE 802.3at
MTBF ≥100,000hours
Indicator 24*Link/Act per device
1*G1 Link/Act  per device
1*SFP Link/Act  per device
1*PoE-MAX per device
1*Power per device
Interface 24 10/100Base-TX ports(Data/Power)
1 10/100/1000Base-T port(Data)
1 1000Base-X SFP port
Port Lightning Protection 6KV
Store and forward Yes
Exchange capacity 8.8 Gbit/s
Packet forwarding rate 6.55Mpps
MAC Address Table 4K
PoE supply management Port 1 to Port 16 support  IEEE802.3at/af POE standard
PoE through pin 1 2 4 5 +,3 6 7 8 -
Voltage input range AC:100-240V~ 50/60Hz
Dimensions 294*215*44mm( W x D x H )
Power Consumption in full configuration:<250W
PoE Max Power Supply:225W
Port Features CCTV: 1-8 ports based CoS, If multiple IP cameras are connected to the switch, you are recommended to enable this mode and connect the G1 or SFP1 port of this switch to the upstream device to which the monitoring computer connects. This ensures smoother monitoring video playback.

Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.

VLAN: In this mode,1-24 ports of the switch cannot communicate with each other, but can communicate with the G1 and SFP1 ports.Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing.

Extend: In this mode, the data rate of 1-8 port of the switch is limited to 10 Mbps, whereas the maximum transmission distance of the port is increased to 250 meters. All the ports of the switch can communicate with each other.
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
