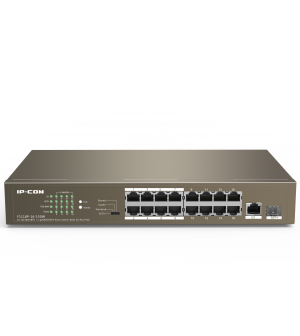

F1118P
Model | F1118P |
Standards&Protocols | IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、 IEEE 802.3af、 IEEE 802.3at |
Switching capacity | 7.2 Gbps |
Throughput | 5.36Mpps |
Dimensions (W × D × H) | 294*178*44mm |
MTBF | ≥100,000 hours(about 11 years) |
Interfaces | 16 10/100Mbps RJ45 Ports(Data/PoE) 1 10/100/1000Mbps RJ45 Ports(Data) 1 100/1000Mbps SFP Slot(Data) (Auto Negotiation/Auto MDI/MDIX) |
Port lightning protection | ≥6KV |
Wire-speed forwarding | Support |
Forwarding mode | Store-forward and cut-through |
Mac Address Table | 4K |
PoE Supply | Port 1 to Port 16 support standard IEEE802.3at/af power( maximum power for each port is 30W), PoE power type is end-span(12+, 36- and 45+, 78- line pair) |
Input Voltage | AC:100-240V~ 50/60Hz |
Power consumption | in full configuration:<135W Power Supply:150W |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
CCTV、Standard, VLAN and Extend Operation Modes Offered | CCTV: 1-8 ports support QoS,If multiple IP cameras are connected to the switch, you are recommended to enable this mode and connect the G1 or SFP1 port of this switch to the upstream device to which the monitoring computer connects. This ensures smoother monitoring video playback. Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. VLAN: In this mode,1-16 portsof the switch cannot communicate with each other, but can communicate with the G1 and SFP1 ports.Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing Extend: In this mode, the data rate of 1-8 port of the switch is limited to 10 Mbps, whereas the maximum transmission distance of the port is increased to 250 meters. All the ports of the switch can communicate with each other. |
Certification | FCC、CE、RoHS |
