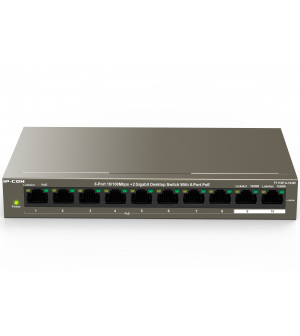

F1110P
| Model | F1110P |
| Standard | IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at |
| MTBF | ≥50,000 hours(about 5 years) |
| Indicators | Link/Act, PoE Status, Power, 1000M |
| Fixed Ports | 8个10/100Base-TX RJ45 Ports(Data/Power) 2个10/100/1000Base-T RJ45 Port(Data) |
| lightning protection | 6KV |
| Wire-speed forwarding | Support |
| Switching capacity | 5.6 Gbit/s |
| Mac Address Table | 4K MAC |
| PoE Supply | Port 1 to Port 8 support standard IEEE802.3at/af power( maximum power for each port is 30W)，PoE power type is end-span(1245+, 3678- line pair) in full configuration：<102W PoE Max Power Supply：99W |
| Dimensions | 177.5mm*104mm*26mm (W × D × H) |
| Input Voltage | AC：100－240V～ 50/60Hz DC：51V /2.1A （Power Adapter ） |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| One-key Mode | Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation. VLAN Mode: 1-8 port can be isolated each other but 1-8 port can connect to 9/10 port after open VLAN to stop broadcast storm to increase forwarding rate of frame. Extend Mode: If Extend mode is enabled, VLAN isolation is enabled. Port 1-4 will be isolated respectively (10Mbps auto-negotiation), but can communicate with the Uplink port. And the delivery distance of powering and network data is up to 250m (10Mbps). |
| Certification | 3C、FCC、CE、RHOS |
