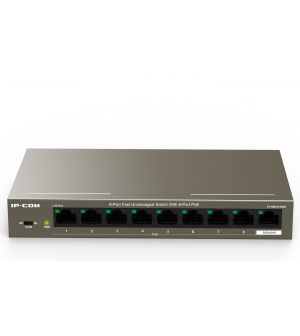

F1109P
Model | F1109P |
Interface | 8 10/100M Base-T ports(Data/Power), 1 10/100M Base-T ports(Data) |
Port Lightning Protection | 6KV |
Store and forward | Yes |
Exchange Capacity | 1.8 Gbps |
Packet forwarding rate | 1.34Mpps |
MAC Address Table | 2K |
PoE supply management | Port 1-8 support IEEE802.3at/af PoE standard |
PoE through pin | 1 2 4 5 +;3 6 7 8 - |
Voltage input range | AC: 100-240V~50/60Hz DC: 51V 2A |
Dimensions | 177.5*104*26mm( W x D x H ) |
Power Consumption | In full configuration: 102W PoE Max Power Supply: 92W |
Port Features | Standard:the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. VLAN:ports 1 to 8 are isolated from each other,but can communicate with ports 9 (uplink port) respectively. |
Environment Operating | Temperature: 0℃~40℃(32℉~104℉) Storage Temperature: -40℃~70℃(-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
