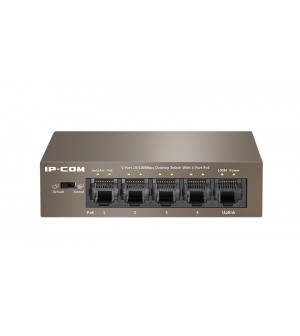

F1105P
| Model | F1105P |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Interface | 5*10/100Mbps auto-negotiation ports, port1 to port4 support IEEE802.3 at/af PoE standard |
| Network Media | 10BASE-TX: UTP category 5, 5e cable (≤250m) 100BASE-TX: UTP category 5, 5e cable (≤150m) |
| Forwarding Rate | 10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port |
| Backbound Bandwidth | 1Gbps |
| Mac Address Table | 1K |
| Transmission Method | Store-And-Forward |
| Indicator LEDs | 5*Link/Act , 4*PoE Status, 1*Power，1* 100Mbps |
| Input Power Supply | External Power Supply: DC: 51V/1.25A |
| Consumption | 2 Watts (max. no PD connected) 63 Watts (max. with 58W PD connected) |
| Dimensions | 100mm*100mm*26mm(L*W*H) |
| Weight | <2kg |
| PoE Total Power | 58W |
| Temperature | -10℃ ~ 40℃ |
| Humidity | 10%－90%RH (non-condensing) |
| Certification | FCC/CE/RoHS/EAC/BIS/RCM |
