| Model |

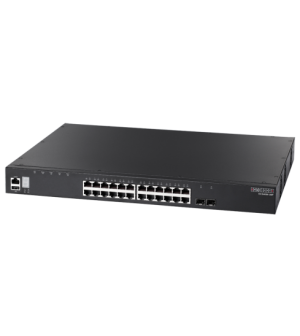

ECS4620-28P |
| RJ-45 10/100/1000 Ports |
24 |
| 100/1000 SFP Ports |
0 |
| 10/100/1000 Combo Ports |
0 |
| SFP+ 10 Gigabit Uplink Ports |
2 |
| 10G SFP+ Expansion Module Slots |
1 |
| RJ-45 Console Port |
O |
| Switching Capacity |
128 Gpbs |
| Forwarding Rate |
95.23 Mpps |
| Flash Memory |
128 MB |
| DRAM |
256 MB |
| MAC Address Table Size |
16 K |
| Jumbo Frames |
10 K |
| Auto-negotiation, Auto-MDI/MDIX |
O |
| Support on all Gigabit ports based on IEEE 802.3af |
O |
| PoE+ based on IEEE 802.3at |
O |
| Auto disable after exceeding power budget |
O |
| Dynamic Power Allocation |
O |
| PoE Power Budget |
410 W |
| Rack Space |
19" |
| Dimension (W x D x H) cm |
44 x 31.5 x 4.4 |
| Weight |
4.5 kg |
| 100-240 VAC, 50-60 Hz |
O |
| Max System Power Consumption (Watts) |
49 W |
| Operating Temperature |
0ºC to 45ºC |
| Storage Temperature |
-40ºC to 70ºC |
| Operating Humidity (non-condensing) |
10% to 90% |
| Storage Humidity (non-condensing) |
10% to 90% |
| Environmental Regulation compliance: WEEE |
O |
| Environmental Regulation compliance: RoHS |
O |
| FCC Class A |
O |
| CE |
O |
| Safety Compliance: CB |
O |
| Safety Compliance: UL |
O |
