ข้อมูลเพิ่มเติม
| Dimensions | ไม่ใช่ | Antenna Type | Parabolic Dual-Pol Dish Antenna |
|---|---|---|---|
| Frequency Range | 4.94-5.875 GHz | Gain | 30dBi |
| Polarization | Dual-Pol | Beamwidth | 6 deg |
| VSWR | ≤1.5:1 typ, ≤1.8:1 max | Connector | 2 N-Type Female |
| Front-to-Back Ratio | >30 dB | Impedance | 50 ohms |
| Maximum Power | 100 watts | Dimension | ø65 x 35cm. (ø25.6 x 13.7in.) |
| Weight | 7.2kg. (16 lbs.) | Wind Load | 125mph (176 lbs, 116 lbs with radome) |
| Operating Temperature | -45°C to 70°C (-49°F to 158°F) |

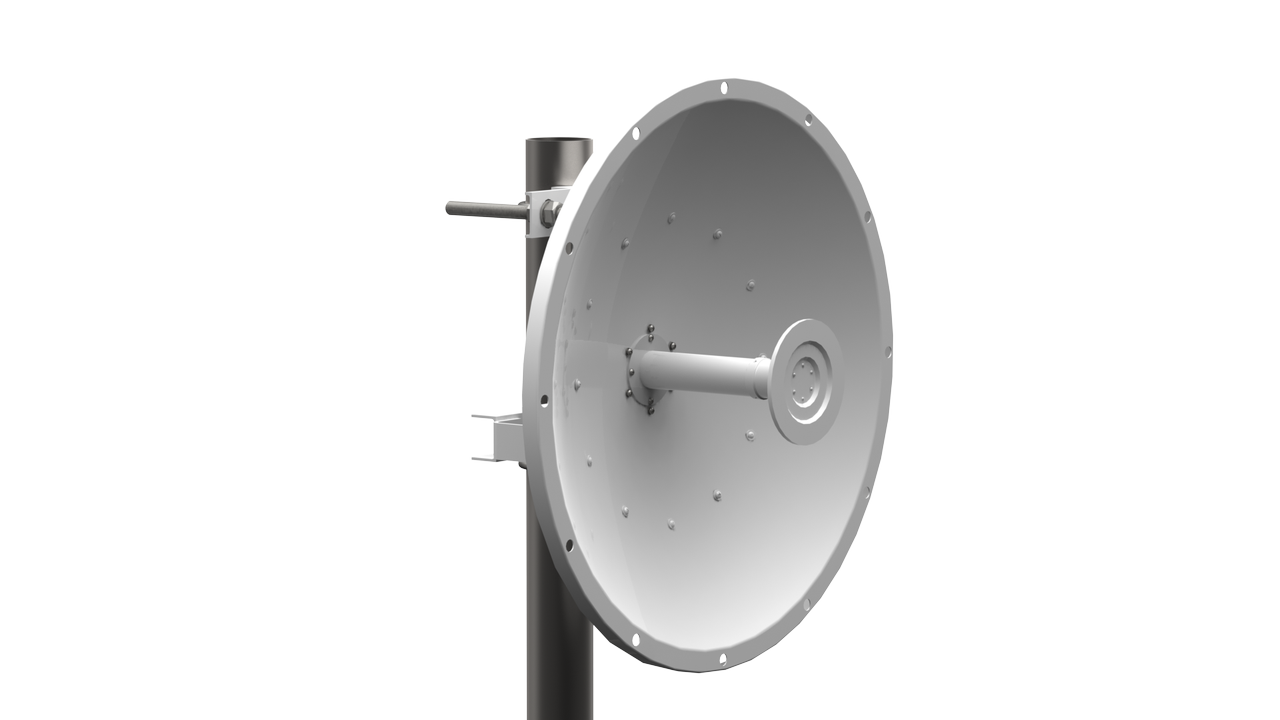

ARC-DA5830SD1
• Industry leading interference rejection design blocks all frequencies below 4.4GHz
• Robust Design meets ETSI EN300, EN302, 2003/108/EC and 2002/95/EC specifications
• High Port to Port Isolation for Ideal MIMO Performance
• Unique mounting feature for ARC enclosures, Ubiquity Rocket, etc.
• Maximum gain achieved with 70% aperture efficiency
• Dual Polarization (H & V)
• Manufactured under strict US quality control proce-dures
• Precise alignment achievable with the high strength pole mount bracket. (included)
• Optional radome available for improved environmental protection (P/N ARC-RD-2FTABS – Sold Separately)
