ข้อมูลเพิ่มเติม
| Dimensions | ไม่ใช่ | Antenna Type | Dual Pol Omni Antenna |
|---|---|---|---|
| Frequency Range | 5.1-5.9 GHz | Gain | 13 dBi |
| Polarization | Dual Linear | Beamwidth | 360 deg / 7deg |
| VSWR | ≤1.5:1 Typ | Connector | Type-N Jack (x2) |
| Front-to-Back Ratio | ไม่ใช่ | Impedance | 50 ohms |
| Maximum Power | 50 watts | Dimension | 24 x 2.05in (60 x 5.2cm) |
| Weight | 7.0 lbs (3.2kg) | Wind Load | 0.33ft 2 (0.031m 2 ) |
| Operating Temperature | -40°F to 149°F (-40°C to 65°C) |

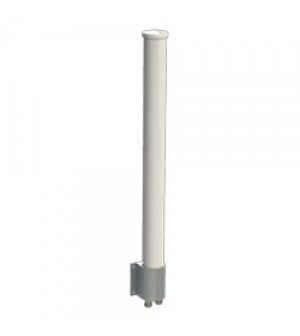

ARC-OA5813SD1
• 360 Degree Coverage
• High gain, low cost circuit design
• Manufactured under strict US quality control procedures
• Low profile, rugged design for outdoor use
