ข้อมูลเพิ่มเติม
Dimensions | ไม่ใช่ | Antenna Type | Dual Pol Omni Antenna |
---|---|---|---|
Frequency Range | 5.1-5.9 GHz | Gain | 10 dBi |
Polarization | Dual Linear | Beamwidth | 360 deg / 12deg |
VSWR | ≤1.5:1 Typ | Connector | Type-N Jack (x2) |
Front-to-Back Ratio | ไม่ใช่ | Impedance | 50 ohms |
Maximum Power | 50 watts | Dimension | 15.5 x 2.05in (39 x 5.2cm) |
Weight | 4.8 lbs (2.2kg) | Wind Load | 1.0ft 2 (0.17m 2 ) |
Operating Temperature | -40°F to 149°F (-40°C to 65°C) |

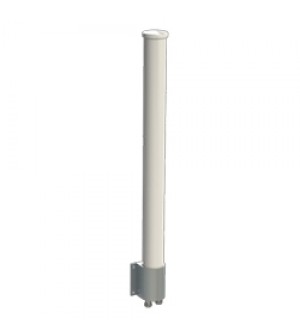

ARC-OA5810SD1
• 360 Degree Coverage
• High gain, low cost circuit design
• Manufactured under strict US quality control procedures
• Low profile, rugged design for outdoor use
