ข้อมูลเพิ่มเติม
Dimensions | ไม่ใช่ | Antenna Type | Dual Pol Omni Antenna |
---|---|---|---|
Frequency Range | 2.4-2.5 GHz | Gain | 13 dBi |
Polarization | Dual Linear | Beamwidth | 360 deg / 7 deg |
VSWR | ≤1.5:1 Typ | Connector | Type-N Jack (x2) |
Front-to-Back Ratio | ไม่ใช่ | Impedance | 50 ohms |
Maximum Power | 50 watts | Dimension | 48 x 3.0in (127 x 7.5cm) |
Weight | 10 lbs (4.5kg) | Wind Load | 1.0ft 2 (0.17m 2 ) |
Operating Temperature | -40°F to 149°F (-40°C to 65°C) |

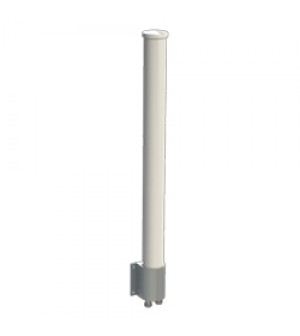

ARC-OA2413SD1
• 360 Degree Coverage
• High gain, low cost circuit design
• Manufactured under strict US quality control procedures
• Low profile, rugged design for outdoor use
