ข้อมูลเพิ่มเติม
| Dimensions | ไม่ใช่ | Antenna Type | Dual Pol Omni Antenna |
|---|---|---|---|
| Frequency Range | 2.4-2.5 GHz | Gain | 10 dBi |
| Polarization | Dual Linear | Beamwidth | 360 deg / 12deg |
| VSWR | ≤1.5:1 Typ | Connector | Type-N Jack (x2) |
| Front-to-Back Ratio | ไม่ใช่ | Impedance | 50 ohms |
| Maximum Power | 50 watts | Dimension | 33.8 x 3.0in (86 x 7.5cm) |
| Weight | 7 lbs (3.2kg) | Wind Load | 1.0ft 2 (0.17m 2 ) |
| Operating Temperature | -40°F to 149°F (-40°C to 65°C) |

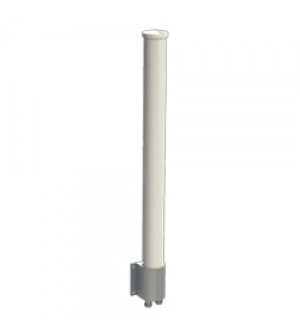

ARC-OA2410SD1
• 360 Degree Coverage
• High gain, low cost circuit design
• Manufactured under strict US quality control procedures
• Low profile, rugged design for outdoor use
