APC Propeller 5

ส่งอีเมล์แนะนำเพื่อน

สถานะของสินค้า : สินค้าพร้อมส่ง

5,000 บาท

จำนวน:

หรือ

รายละเอียดโดยย่อ

- IEEE 802.11 a/n

- 5 GHz MiMo2x2

- Access Point (auto WDS), Station, Station WDS, iPoll Acess point, iPoll Station, Repeater

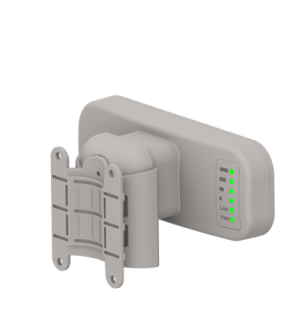

APC Propeller 5

มุมมองเพิ่มเติม

ข้อมูลเพิ่มเติม

Dimensions	ไม่ใช่	Radio mode	IEEE 802.11 a/n
WLAN Standard	MIMO 2x2	Operating mode	Access Point (auto WDS), Station, Station WDS, iPoll Acess point, iPoll Station, Repeater
Radio Frequency Band	5 GHz	Receive Sensitivity	Varying between -96 and -78 dBm depending on modulation
Channel Size	20, 40 MHz	Antenna Type	Integrated directional dual-polarized panel
Gain	15 dBi	Wired Interface	10/100 Base-T, Rj45, USB
Built in Surge Protection	Yes	Operation Mode	Bridge, Router
Wan	Static IP, DHCP client, PPPoE Client	NAT	Routing w/ or w/o NAT
Static routing	Supported	DHCP	Client, Server, Relay
Port Forwarding	Supported	VLAN	Supported for management and data

APC Propeller 5

The APC Propeller 5 is a new generation wireless device designed for client and small scale base-station applications. It has a unique mechanism to do mechanical antenna parameter shifting and achieve the best performance in different operation modes (patent pending).

This product is equipped with a high output power MIMO radio and 15 dBi dual-polarized antenna which make the device ideal for short to medium range wireless communication.

Dual firmware image will allow safe software upgrades. The device will restart using the prior firmware in the event of an upgrade failure.

The APC Propeller 5 uses an advanced and feature-rich operating system which supports bridge/router and repeater modes (repeater mode allows the product to operate as an access point and as a station at the same time).

Deliberant OS also supports iPoll - proprietary wireless communication technology to increase throughput, packet per second rate and stabilize latency on your network. It has a user-friendly Adobe Flex based GUI with instant reconfiguration without a reboot, includes useful installation tools (site survey, delayed reboot, spectrum analyzer, ping, traceroute) and is compatible with our standalone and cloud based Wireless Network Management System (WNMS) - one of the most advanced management tools on the market.

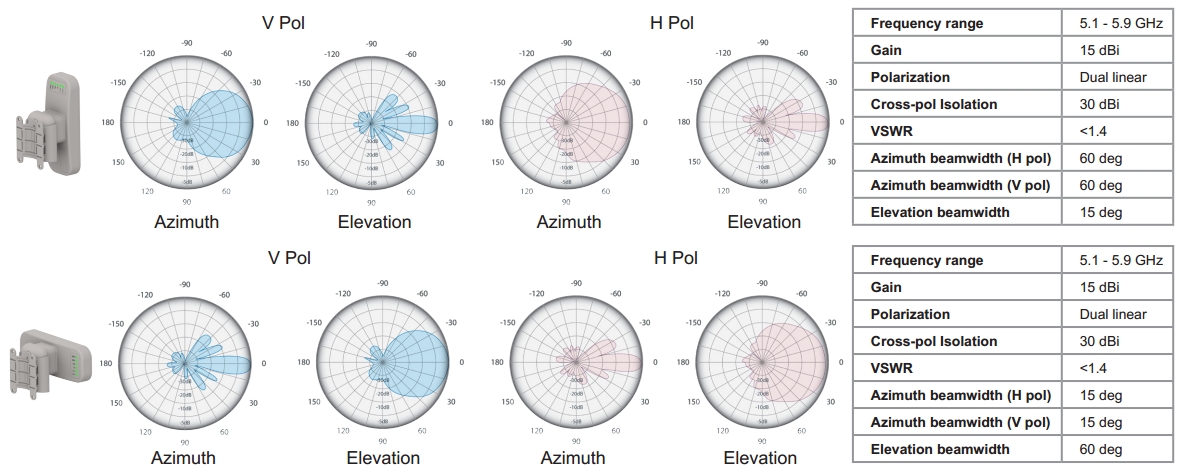

Mechanical antenna characteristics adjustment

The APC Propeller has a unique manual antenna characteristics adjustment, which allows using the device with a horizontal orientation for client mode. This greatly reduces interference, as the main noise source is on the azimuth. Alignment is easy as only left and right movement of the device is necessary (no need to move it upwards or downwards as the antenna angle on the elevation is wide).

Usage recommendation

PTP mode (two APC Propeller 5 devices): 13 km/ 8.08 mi

PTMP mode (APC Propeller 5 as a client device): 8 km/ 4.97 mi

PTMP full capacity mode (APC Propeller as a client device): 1.5 km/ 0.97 mi

Maximum throughput: 160 Mbps
