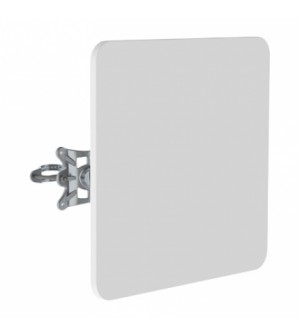

APC Mach 5

สถานะของสินค้า : สินค้าพร้อมส่ง

14,000 บาท
หรือ

รายละเอียดโดยย่อ

IEEE 802.11 a/n
5 GHz MiMo2x2
Access Point (auto WDS), Station, Station WDS, iPoll Acess point, iPoll Station

ข้อมูลเพิ่มเติม

Dimensions ไม่ใช่ Radio mode MIMO 2x2
WLAN Standard IEEE 802.11 a/n, iPoll (proprietary) Operating mode Access Point (auto WDS), Station, Station WDS, iPoll Acess point, iPoll Station
Radio Frequency Band 5 GHz Receive Sensitivity Varying between -95 and -75 dBm depending on modulation
Channel Size 20, 40 MHz Antenna Type Integrated directional dual-polarized panel
Gain 23 dBi Wired Interface 10/100 Base-T, Rj45
Built in Surge Protection Yes Operation Mode Bridge, Router
Wan Static IP, DHCP client, PPPoE Client NAT Routing w/ or w/o NAT
Static routing Supported DHCP Client, Server, Relay
Port Forwarding Supported VLAN Supported for management and data

APC Mach 5

  The APC Mach 5presents a 5 GHz point-to-point product with superior performance building longdistance links. This product is equipped with an extreme output power 802.11n radio that was created with a unique hardware design and coupledwith a reliable, feature-rich operating system. This device also has a robust,IP-67 compliant enclosure, which is combined with a high-gain dual-polarizedpanel antenna. The APC Mach 5 is generally designed for PTP applications, but can also act as a high-end client device.

  The included, robust software engine allows the APC Mach 5 to work as bridge or as a router, provides a user-friendly Adobe Flex -based GUI with instant changes, includes useful installation tools (Sitesurvey, Antenna alignment, Delayed reboot, Spectrum analyzer), and also iscompatible with Wireless Network Management System for one of the most advancedmanagement tools on the market.



Usage recommendation

PTP mode (two APC Mach 5 devices): 50 km/ 31.07 mi

PTMP mode (APC Mach 5 as a client device): 25 km/ 15.53 mi

PTMP full capacity mode (APC Mach 5 as a client device): 10 km/ 6.21 mi

Maximum throughput: 160 Mbps
