APC Button af

สถานะของสินค้า : สินค้าพร้อมส่ง

4,000 บาท


- IEEE 802.11 b/g/n

- PoE 802.3 AF

- 2.4 GHz MiMo2x2

- Access Point (auto WDS), Station, Station WDS, Repeater


Dimensions ไม่ใช่ Radio mode MIMO 2x2
WLAN Standard IEEE 802.11 b/g/n Operating mode Access Point (auto WDS), Station, Station WDS, Repeater
Radio Frequency Band 2.4 GHz Receive Sensitivity Varying between -94 and -74 dBm depending on modulation
Channel Size 20, 40 MHz Antenna Type 2 x internal omni-directional antenna
Gain 3 dBi Wired Interface 10/100 Base-T, RJ45
Built in Surge Protection No Operation Mode Bridge, Router
Wan Static IP, DHCP client, PPPoE Client NAT Routing w/ or w/o NAT
Static routing Supported DHCP Client, Server, Relay
Port Forwarding Supported VLAN Supported for management and data

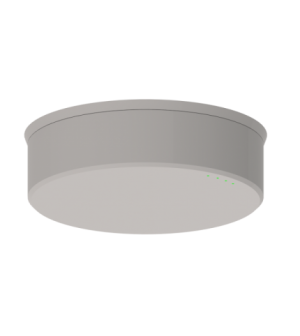

APC Button af

The APC Button af is a small, robust and high performance 2.4 GHz indoor access point designed for SOHO and small to medium size enterprise applications. Unobtrusive design and operational robustness make it ideal for permanent installations on high walls or ceilings.

This product is equipped with a high output power 802.11n MIMO radio, which allows effective communication with older 802.11b/g equipment as well as newer standards based devices.

Dual firmware image will allow safe software upgrades. The device will restart using the prior working firmware in the unfortunate event of an upgrade failure.

802.3af standard support allows powering the device with PoE switches and makes installation easy by running a single cable from a switch.

The APC Button uses an advanced and feature-rich operating system, which supports bridge/router and repeater modes (repeater mode allows the product to operate as
an access point and as a station at the same time). It also provides a user-friendly Adobe Flex based GUI with instant reconfiguration (without a reboot), installation tools (site survey, delayed reboot, spectrum analyzer, ping, trace route) and is compatible with our standalone and cloud based Wireless Network Management System (WNMS).


Antenna specifications

Frequency range 2.4 GHz
Gain 3 dBi
