Antenna specifications
ข้อมูลเพิ่มเติม
Dimensions | ไม่ใช่ | Radio mode | IEEE 802.11 b/g/n |
---|---|---|---|
WLAN Standard | SiSo 1x1 | Operating mode | Access point (auto WDS), Station, Station WDS, iPoll Access Point, iPoll Station |
Radio Frequency Band | 2.4 GHz | Receive Sensitivity | Varying between -95 and -75 dBm depending on modulation |
Channel Size | 20, 40 MHz | Antenna Type | Integrated high-gain grid antenna |
Gain | 20 dBi | Wired Interface | 10/100 Base-T, Rj45 |
Built in Surge Protection | Yes | Operation Mode | Bridge, Router |
Wan | Static IP, DHCP client, PPPoE Client | NAT | Routing w/ or w/o NAT |
Static routing | Supported | DHCP | Client, Server, Relay |
Port Forwarding | Supported | VLAN | Supported for management and data |
APC 2S-20

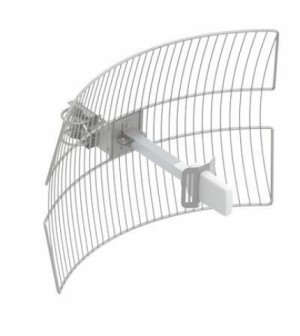

The APC 2S-20 presents a 2.4GHz CPE product with superior performance building long distance links. This product is equipped with an extreme output power 802.11N radio that was created with a unique hardware design and coupled with a reliable, feature-rich operating system. This device also has a robust, IP-65 compliant enclosure which is combined with a high-gain grid antenna. The APC 2S-20 is generally designed for CPE applications but can also act as an access point thus allowing point to point network applications.
The included, robust software engine allows the APC 2S-20 to work as bridge or as a router, provides a user-friendly Adobe Flex - based GUI with instant changes, includes useful installation tools (Site survey, Antenna alignment, Delayed reboot, Spectrum analyzer), and also is compatible with Wireless Network Management System for one of the most advanced management tools on the market.
Frequency range | 2.4-2.5GHz |
Gain | 20 dBi |
Polarization | single linear |
Max VSWR | 1.7:1 |
Beamwidth | 16° |
Elevation Beamwidth | 17° |
Usage recommendation
PTP mode (two APC 2S-20 devices): 40 km/ 24.86 mi
PTMP mode (APC 2S-20 as a client device): 15 km/ 9.32 mi
PTMP full capacity mode (APC 2S-14 as a client device): 7 km/ 4.35 mi
Maximum throughput: 90 Mbps
iPoll - proprietary wireless transmission protocol
|
Deliberant APC series products have an option to use extremely efficient proprietary point-to-multipoint protocol called iPoll™. It eliminates mediated access by polling every subscriber sequentially. The data transmission arbitration is accomplished by the access point. Proprietary iPoll™ protocol enables maximum bandwidth with the lowest possible latency. |
WNMS - managing and monitoring your networks on the cloud
All Deliberant APC series devices can be managed and monitored using WNMS (Wireless Network Management System). A single software solution simplifies a large number of tasks for network administrators. WNMS Cloud version is available for those who are not willing to run it on an in-house servers
