APC 2S-14

สถานะของสินค้า : สินค้าพร้อมส่ง

4,280 บาท
หรือ

รายละเอียดโดยย่อ

- IEEE 802.11 b/g/n

- 2.4 GHz SiSo2x2

- Access Point (auto WDS), Station, Station WDS, iPoll Acess point, iPoll Station

ข้อมูลเพิ่มเติม

Dimensions ไม่ใช่ Radio mode IEEE 802.11 b/g/n
WLAN Standard SiSo 1x1 Operating mode Access point (auto WDS), Station, Station WDS, iPoll Access Point, iPoll Station
Radio Frequency Band 2.4 GHz Receive Sensitivity Varying between -95 and -75 dBm depending on modulation
Channel Size 20, 40 MHz Antenna Type Integrated directional or sector antenna
Gain 14 dBi (directional) single polarized or 10dBi (sector) single polarized Wired Interface 10/100 Base-T, Rj45
Built in Surge Protection Yes Operation Mode Bridge, Router
Wan Static IP, DHCP client, PPPoE Client NAT Routing w/ or w/o NAT
Static routing Supported DHCP Client, Server, Relay
Port Forwarding Supported VLAN Supported for management and data


APC 2S-14


The APC 2S-14 presents a 2.4GHz CPE product with superior performance and flexibility. It is an ideal WISP equipment already well recognized by the industry. This product is equipped with an extreme output power 802.11n radio that was created with a unique hardware design and coupled with a reliable, feature-rich operating system. This small device also has a robust, IP-65 compliant enclosure which is combined with a medium gain corner reflector, and emits EIRP up to 10 W. The APC 2S-14 is generally designed for CPE applications but can also act as an access point thus allowing point to point and point to multipoint network applications.

The included, robust software engine allows the APC 2S-14 to work as bridge or as a router, provides a user-friendly Adobe Flex - based GUI with instant changes, includes useful installation tools (Site survey, Antenna alignment, Delayed reboot, Spectrum analyzer), and also is compatible with Wireless Network Management System for one of the most advanced management tools on the market.

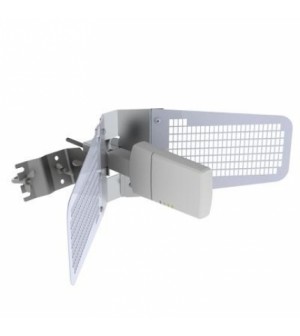

Smart antenna design

Antenna

Deliberant APC 2S-14 has a detachable antenna design which allows mechanically changing antenna directivity. With the flaps it is 20 degree directional antenna and without the flaps it is a 60 degree sector making this product ideal to use as a small scale base-station or as a small to medium range client device operating on a 2.4 GHz frequency band.









Antenna specifications

Frequency range 2.4-2.5GHz
Gain 14 dBi/10 dBi
Polarization Dual linear
Cross-pol lsolation    40 dBi minimmum
Max VSWR 1.8:1
H-pol Beamwidth 20°
V-pol Beamwidth 54°
Elevation Beamwidth       50°



Usage recommendation

PTP mode (two APC 2S-14 devices): 20 km/ 12.42 mi

PTMP mode (APC 2S-14 as a client device): 10 km/ 6.21 mi

PTMP full capacity mode (APC 2S-14 as a client device): 4 km/ 2.49 mi

Maximum throughput: 90 Mbps

iPoll - proprietary wireless transmission protocol

Deliberant APC series products have an option to use extremely efficient proprietary point-to-multipoint protocol called iPoll™. It eliminates mediated access by polling every subscriber sequentially. The data transmission arbitration is accomplished by the access point. Proprietary iPoll™ protocol enables maximum bandwidth with the lowest possible latency.

 WNMS - managing and monitoring your networks on the cloud

All Deliberant APC series devices can be managed and monitored using WNMS (Wireless Network Management System). A single software solution simplifies a large number of tasks for network administrators. WNMS Cloud version is available for those who are not willing to run it on an in-house servers
