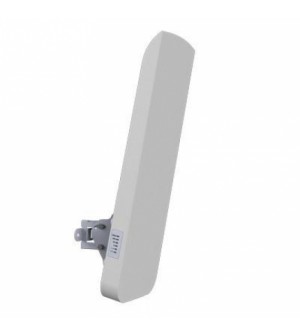

APC 2M-90

สถานะของสินค้า : สินค้าพร้อมส่ง

7,490 บาท
หรือ

รายละเอียดโดยย่อ

- IEEE 802.11 b/g/n

- 2.4 GHz MiMo2x2

- Access Point (auto WDS), Station, Station WDS, iPoll Acess point, iPoll Station

ข้อมูลเพิ่มเติม

Dimensions ไม่ใช่ Radio mode IEEE 802.11 b/g/n
WLAN Standard MIMO 2x2 Operating mode Access Point (auto WDS), Station, Station WDS, iPoll Acess point, iPoll Station
Radio Frequency Band 2.4 GHz Receive Sensitivity Varying between -94 and -74 dBm depending on modulation
Channel Size 20, 40 MHz Antenna Type Integrated dual-polarized sector
Gain 16 dBi Wired Interface 10/100 Base-T, Rj45
Built in Surge Protection Yes Operation Mode Bridge, Router
Wan Static IP, DHCP client, PPPoE Client NAT Routing w/ or w/o NAT
Static routing Supported DHCP Client, Server, Relay
Port Forwarding Supported VLAN Supported for management and data



APC 2M-90

The APC 2M-90 delivers the highest performance and stability available in the 2.4 GHz Base Station class class. This product combines a robust IP-65 compliant enclosure with a highly advanced 802.11n radio core containing MIMO 2x2 technology along with an integrated high gain dual polarized 90° sector antenna. The device is powered by a reliable, advanced, and feature-rich operating system, allowing the creation of very high throughput and stable wireless networks quickly, safely, and effectively. In addition, the APC 2M-90 supports client operating mode which extends application scenarios, but the main advantage of this model is a professional and high-gain integrated antenna.

The robust software engine allows the APC 2M-90 to work as bridge or as a router, provides a user-friendly Adobe Flex - based GUI with instant changes, includes useful installation tools (Site survey, Antenna alignment, Delayed reboot, Spectrum analyzer), and also is compatible with Wireless Network Management System for one of the most advanced management tools on the market.

External grounding option is available on the APC 2M-90 model. When grounded to the pole and used together with the FTP cable, shielded RJ-45 connector and a grounded electrical system, the base-station is really well protected from voltage jumps and lightning strikes.



Antenna specifications

Frequency range 2.4-2.5GHz
Gain 16 dBi
Polarization Dual linear
Cross-pol lsolation    25 dBi
Max VSWR 1.7:1
H-pol Beamwidth 88°
V-pol Beamwidth 93°
Elevation Beamwidth       35°



Usage recommendation

PTMP mode (APC 2M-90 as a base-station): 10 km/ 6.21 mi

Maximum throughput: 160 Mbps


iPoll - proprietary wireless transmission protocol

Deliberant APC series products have an option to use extremely efficient proprietary point-to-multipoint protocol called iPoll™. It eliminates mediated access by polling every subscriber sequentially. The data transmission arbitration is accomplished by the access point. Proprietary iPoll™ protocol enables maximum bandwidth with the lowest possible latency.

 WNMS - managing and monitoring your networks on the cloud

All Deliberant APC series devices can be managed and monitored using WNMS (Wireless Network Management System). A single software solution simplifies a large number of tasks for network administrators. WNMS Cloud version is available for those who are not willing to run it on an in-house servers
