| Product Information |
| Model |

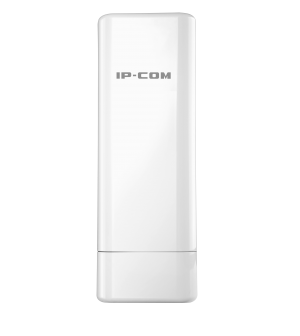

AP515 |
| Deployment |
Pole Mount |
| Dimensions |
270*94.86*67.5mm |
| Application Scenarios |
WiFi coverage for hotel pool,garden,campus,park etc |
| Hardware Specifications |
| Frequency Bands |
2.4GHz |
| PHY Data Rates |
300Mbps |
| Wi-Fi Standards |
IEEE 802.11n/g/b |
| Interfaces |
1*10/100/1000Mbps PoE/LAN port |
| Buttons |
1*RESET |
| Antennas |
7dBi Directional Antenna |
| Antenna Beamwidth |
Horizontal: 70° Vertical: 70° |
| Max Power Consumption |
15W |
| Waterproof Level |
IP64 |
| LED Indicators |
PWR,WiFi,LAN,Control |
| Power Supply |
PoE 802.3at |
| Receiver Sensitivity |
MCS0: -88dBm
MCS7: -72dBm |
| Software Specifications |
| IP Setting |
Support |
| Operating mode |
AP,WDS,Client+AP |
| WiFi Radio |
Enable or Disable |
| BSSIDs |
4 |
| SSID Hiding |
Enable or Disable |
| User Isolation |
Support |
| Clients Limit |
Connected user number limitation for every SSID |
| VLANs |
802.1Q, 4094 VLAN IDs (1 to 4094) and SSID-based VLAN assignment |
| RSSI Threshold |
Support |
| WMM Capable |
Support |
| APSD Capable |
Support |
| Wireless Client Statistic |
Support |
| Adjustable Power |
Adjustable step by 1dBm |
| Access Control |
Connect limitation based on mac address |
| Wireless Security |
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 |
| DHCP Server |
Support |
| VPN Pass-Through |
PPTP,L2TP |
| Schedule Reboot |
Support |
| Circularly Reboot |
Support |
| Page Timeout |
Support |
| Network Diagnoses |
Ping |
| Time&Date Setting |
Support |
| System Log |
Support |
| Backup Configuration |
Support |
| Restore Configuration |
Support |
| Reset Device |
Support from Web UI or AP Controller |
| Username Management |
Support from Web UI or AP Controller |
| Reboot Device |
Support from Web UI or AP Controller |
| Firmware Upgrade |
Support from Web UI or AP Controller |
| Centralized Management |
Managed by AC1000/AC2000/AC3000 |
| Working Environment |
| Operating Temperature |
-20℃~55℃ |
| Storage Temperature |
-30℃ ~ 70℃ |
| Operating Humidity |
10%－90% (non-condensing) |
| Storage Humidity |
10%－90% (non-condensing) |
| Default Login IP |
192.168.0.254 |
| Default User Name |
admin |
| Default Password |
admin |
| Certifications |
FCC/CE/RoHS |
